Extreme Networks

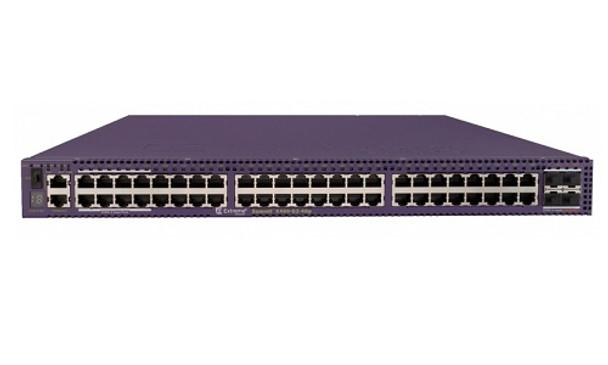

16719 Extreme Networks X460-G2-48p-GE4-Base Advanced Aggregation Switch, 48 PoE Ports/4 SFP (New)

Write a Review
Ask Questions
16719 Extreme Networks X460-G2-48p-GE4-Base Advanced Aggregation Switch, 48 PoE Ports/4 SFP (New)

16719 Extreme Networks X460-G2-48p-GE4-Base Advanced Aggregation Switch, 48 PoE Ports/4 SFP (New)

$1,773.00
RRP: $9,625.00
(You save $7,852.00 (82%))
  • SKU: 16719
  • UPC: 644728167197
  • MPN: 16719
  • Condition: New
  • Availability: Limited Stock Available
Availability: Limited Stock Available
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Condition: NEW
Availability: Inventory Available - But May Be Limited

ExtremeSwitching X460-G2 Scalable Advanced Aggregation Switch with ExtremeXOS modular operating system - 48 x 10/100/1000BASE-T PoE-plus and 4 x 1GBaseX - Unpopulated: rear VIM Slot, rear Timing Slot, 2 PSU slots and fan module slot (X460-G2-48p-GE4-Base-Unit Part # 16719)

General
Device Type Switch - 48 ports - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x SFP
Power Over Ethernet (PoE) PoE+
Performance Aggregate switching bandwidth: 260 Gbps ¦ Forwarding performance: 193.4 Mpps
Capacity Virtual interfaces (VLANs): 4094 ¦ QoS hardware queues per port: 8
MAC Address Table Size 98K entries
Jumbo Frame Support 9216 bytes
Features 4MB packet buffer
Compliant Standards IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az
Processor X MIPS: 1 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Status Indicators Port status, power, fan
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 1000Base-X SFP ¦ 1 x console RJ-45 management ¦ 1 x management (LAN) RJ-45 ¦ 1 x USB Type A
Expansion Slots 2 (total) / 2 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 2 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards NEBS level 3, TUV GS, C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, FCC, EN 61000-4-11, FCC CFR47 Part 15, EN 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, KCC, FDA, CDRH, IEC 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, VCCI Class A, EN 60825-1:2001, EN 300386, EN 300 386 V1.4.1, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EMC 2004/108/EC, LVD 2006/95/EC, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-5:2005, IEC 61000-4-6:2008, EN 55022:2006+A1:2007
Dimensions & Weight
Width 17.4 in
Depth 19.1 in
Height 1.7 in
Weight 15.21 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 - 95% (non-condensing)
