Condition: NEW
Manufacturer Part #: 900-9D3B6-00SN-AB0

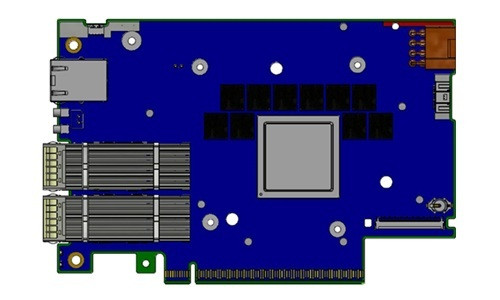

NVIDIA BlueField-3 B3240 DPU - Crypto Disabled with integrated BMC - Dual-Slot FHHL (Full-Height Half-Length) P-Series / 16 Arm-Cores - InfiniBand: NDR 400Gb/s (Default) / Ethernet: 400GbE - 2x QSFP112 Port - PCIe Support Gen 5.0 x16 - A supplementary 8-pin ATX power supply connectivity available through the external power supply connector is required - 1x tall bracket (shipped assembled on the card)

The NVIDIA BlueField-3 is designed to accelerate data center infrastructure workloads and usher in the era of accelerated computing and AI. Supporting both Ethernet and InfiniBand connectivity, BlueField-3 offers speeds up to 400 gigabits per second (Gb/s). It combines powerful computing with software-defined hardware accelerators for networking, storage, and cybersecurity -- all fully programmable through the NVIDIA DOCA software framework.
The BlueField-3 DPU is a cloud infrastructure processor that empowers organizations to build software-defined, hardware-accelerated data centers from the cloud to the edge. BlueField-3 DPUs offload, accelerate, and isolate software-defined networking, storage, security, and management functions, significantly enhancing data center performance, efficiency, and security. By decoupling data center infrastructure from business applications, BlueField-3 creates a secure, zero-trust data center infrastructure, streamlines operations, and reduces the total cost of ownership.

BlueField-3 IC: BlueField-3 P-Series - 16 Arm-Cores - 560 MHz/2133MHz

Physical
Dual-Slot FHHL Card Dimensions: 111.15mm x 167.65mm
Tall Bracket Dimensions: 121.0mm x 21.6mm
Heatsink Dimensions (Length, Width, Height): 139.6mm x 92.7mm x 29.3mm

Interfaces
PCI Express Interface: Gen 5.0 SERDES @ 32.0GT/s, 16 lanes (4.0, 3.0, 2.0 and 1.1 compatible) | Optional: Additional PCIe x16 Gen 4.0/5.0 @ SERDES 32GT/s through the PCIe auxiliary passive card and Cabline SA-II Plus harnesses
On-board Memory: Dual-channel with 20 DDR5 + ECC (128bit + 16bit ECC) for a total of 32GB @ 5600MT/s | 40GB pSLC eMMC memory + 128GB SSD
Networking Connector: Dual QSFP112 (copper and optical)

Data Rate
InfiniBand (Default Speed): NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
Ethernet: 400/200/100/50/25/10 Gb/s

Protocol Support
InfiniBand: IBTA v1.5(a) Auto-Negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 ( 2 lanes x 100Gb/s per lane ) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane)
Ethernet: 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI
PCI Express 5.0: SERDES @ 32.0GT/s, 16 lanes (4.0, 3.0, 2.0 and 1.1 compatible)

Electrical and Thermal Specifications
Voltage: 12V

Environmental
Temperature: Operational 0°C to 55°C | Non-operational -40°C to 70°C(b)
Humidity: Operational 10% to 85% relative humidity | Non-operational 10% to 90% relative humidity
Altitude (Operational): 3050m

Regulatory
Safety: CB / cTUVus / CE
EMC: CE / FCC / VCCI / ICES / RCM
RoHS: RoHS compliant
Regulatory Model Number: D3B6
