Condition: NEW
Manufacturer Part #: 920-9N42C-00RB-7C0

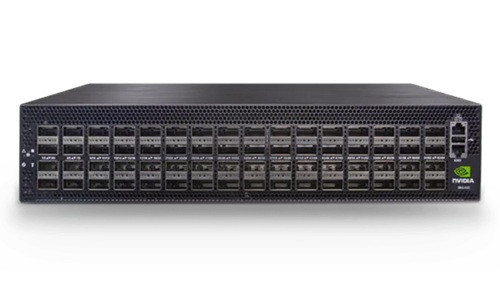

NVIDIA Spectrum-4 based 400GbE 2U Open Ethernet switch with Cumulus Linux authentication, 64 x QSFP56-DD ports and 2 x SFP28 port, 2 power supplies (AC), x86 CPU, Secure Boot, standard depth, Connector-to-Power Airflow, tool-less rail kit

Environmental
Temperature: Operational: 0° to 40°C | Non-Operational: -40° to 70°C
Humidity: Operational: 10% to 85% non-condensing | Non-Operational: 10% to 90% non-condensing
Altitude: 3050 m

Regulatory
Safety/EMC: CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC
RoHS: RoHS compliant

Power
Input Voltage: 1x/2x, High Line, Rated Vac 220V-240VVac Minimum 200 Vac Maximum 264AC current rating 16A50/60Hz
Global Power Consumption: Typical power with passive cables (ATIS): 670W

Main Devices
CPU: Intel x86 Xeon, Hexa-core Coffee Lake E-2276ME w/secured-boot
PCIe: Gen3 x4
Switch: NVIDIA Spectrum-4
Memory: 32GB RAM DDR4, 160GB SSD

Throughput: 25.6 Tbps

Mechanical
Size: 3.46" (H) x 17.2" (W) x 28.3" (D)| 3.46" (H) x 17.2" (W) x 29.3" (D) with fan levers
Mounting: 19" rack mount
Weight: 51.81 lbs
Speed: Ports #1-64: 10/25/50/100/200/400GbE | Port #65-66: 1/10/25GbE
Connector Cage: Ports #1-64: QSFP56-DD | Port #65-66: SFP28
