Condition: NEW
Manufacturer Part #: C1300-48FP-4X

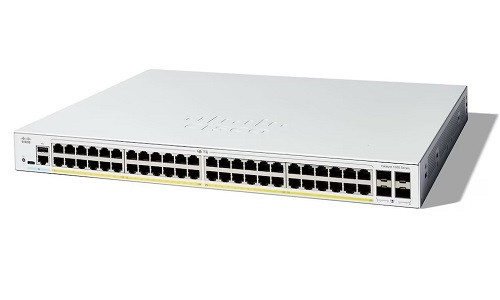

Cisco Catalyst 1300 Switch - Total 48 Gigabit Ethernet and 4 10 Gigabit Ethernet Ports - 48 x 10/100/1000 PoE+ Ports with 4 x 10 Gigabit SFP+ Uplinks - 740w PoE budget - Internal Universal Power Supply - 1 x Fan - Rack mountable

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you're ready for the Cisco Catalyst 1300 Series Switches.

Device Type: Switch - 48 ports - L3 - managed - stackable

Enclosure Type: Rack-mountable

Subtype: Gigabit Ethernet

Ports: 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+

Power Over Ethernet (PoE): PoE+

PoE Budget: 740 W

Performance: Forwarding rate (64?byte packets): 77.38 Mpps | Switching capacity: 104 Gbps

Capacity: MSTP instances: 8 | RPVST+ instances: 126 | Link aggregation groups: 8 | Link aggregation ports: 8 | VLAN IDs: 4093 | IGMP multicast groups: 2000 | IPv4 routes (static): up to 990 | IPv4 interfaces: 128 | ACL rules: 1024 | Priority queues: 8 | Packet buffer size: 3 MB

MAC Address Table Size: 16000 entries

Jumbo Frame Support: 9000 bytes

Routing Protocol: RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour

Remote Management Protocol: SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog

Features: BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, 1 fan, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, Energy-Efficient Ethernet (EEE), DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimization, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az

Power: AC 100-240 V (50 - 60 Hz)

Dimensions (WxDxH): 17.5 in x 13.8 in x 1.7 in

Weight: 12.83 lbs
