Condition: NEW
Manufacturer Part #: 8300-2N2S-6T

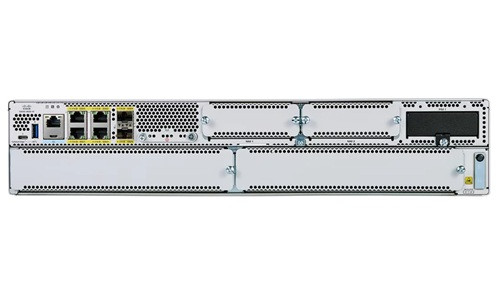

Cisco Catalyst 8300 Edge Platform - SD-WAN-enabled, 5G/LTE-ready modular enterprise branch router - 10G IP throughput - 2G SD-WAN throughput - 4 x RJ-45 and 2 x SFP embedded ports (up to 1G WAN) with 1 x PIM, 2 x NIM, and 2 x SM slot - Dual power supplies

The Cisco Catalyst 8300 Series Edge Platforms are best-of-breed, 5G-ready, cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.
The Catalyst 8300 Series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated Cisco Catalyst SD-WAN services.

Network Device Type: Router

Form Factor: 2RU

Routing Protocol: OSPF, BGP, RIP, IS-IS

Processor / Type: Multicore

RAM / Total Installed Size: 8 GB

Flash Memory / Installed Size: 8 GB

Power / Device Type: Power Supply

Power Consumption Operational: 89 Watt

Power / Voltage Required: AC: 85 to 264 VAC, DC: -40 to 72V

Interfaces: 6 x 1-Gigabit Ethernet ports

Temperature Required: Operating temperature: 0 to 40C; Storage temperature: -40 to 70C

Humidity Required: Operating Humidity: 5 to 85%; Nonoperating and Storage Humidity: 5 to 95%

Features: Multicore processors; Embedded IPsec VPN hardware acceleration; Integrated Gigabit Ethernet ports; DRAM; Flash memory support; M.2 storage; Default dual power supplies

Connectivity Technology: Wired

Data Transfer Rate: 1 Gbps

Data Link Protocol: Gigabit Ethernet

Encryption Algorithm: 3DES; AES; DES

Transport Protocol: Gigabit Ethernet

Authentication Method: RADIUS

Switching Protocol: Gigabit Ethernet

Remote Management Protocol: SSH; DHCP; SNMP

Width: 17.25 Inch

Depth: 18.52 Inch

Height: 3.5 Inch

Weight: 40 lbs
