Product Overview
Condition: NEW
Manufacturer Part #: C9300-24P-M

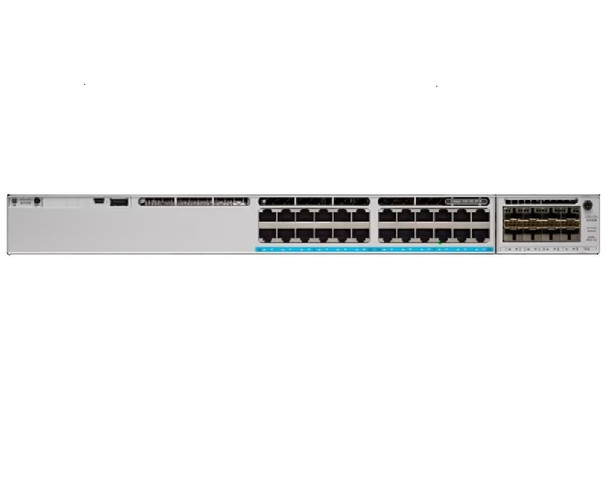

Cisco Catalyst 9300-M Switch Managed via Cisco Meraki Dashboard - Layer 3, 24 port PoE+ switch (24 x 1G copper ports; supports optional uplink network modules) - supports optional 10G or 40G modular uplink sold separately - Stack up to 8 switches with 480 Gbps of stacking bandwidth (stacking kit sold separately) - has 2 FRU power supply module slots (ships with 1 default power supply); 715 watt default primary AC power supply is PWR-C1-715WAC-P with a PoE budget of 445 watt - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-480 stacking option - Enterprise and Advanced licenses are available in 1, 3, 5, 7, and 10 year terms
The Catalyst 9300-M switch is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. They also deliver resiliency with fast stack convergence and StackPower, as well as provide Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security.
By pooling and distributing power across C9300-Ms using a series of StackPower cables, the StackPower provides simple and resilient power distribution across the stack.
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE): PoE+
PoE Budget: 445 W
Performance: Switching capacity: 208 Gbps | Stacking bandwidth: 480 Gbps | Forwarding rate: 154.76 Mpps
Capacity: QoS queues: 8 | Member ports per aggregated link: up to 8 | VLANs with trunking: 4094
MAC Address Table Size: 32000 entries
Routing Protocol: IGMP, VRRP, OSPFv2, static IP routing, MSTP, RSTP, STP
Remote Management Protocol: SNMP, DHCP, IPv4, IPv6, Syslog
Features: VLAN support, port mirroring, Broadcast Storm Control, firmware upgradable, Per-VLAN Spanning Tree (PVST), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), DHCP relay, Cisco StackPower technology, hot swappable 3 fans, network diagnostics, Role-Based Access Control (RBAC), push notification, STP BPDU Guard, STP loop guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation, Protocol Independent Multicast (PIM), MAC Access Bypass (MAB), VLAN trunking, Cisco Discovery Protocol (CDP), Rapid PVST (RPVST), sticky MAC, adaptive policy, usage statistics
Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power: AC 100-240 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 17.7 in x 1.7 in
Weight: 16.31 lbs
