Product Overview
Condition: NEW
Manufacturer Part #: C9300-48P-M

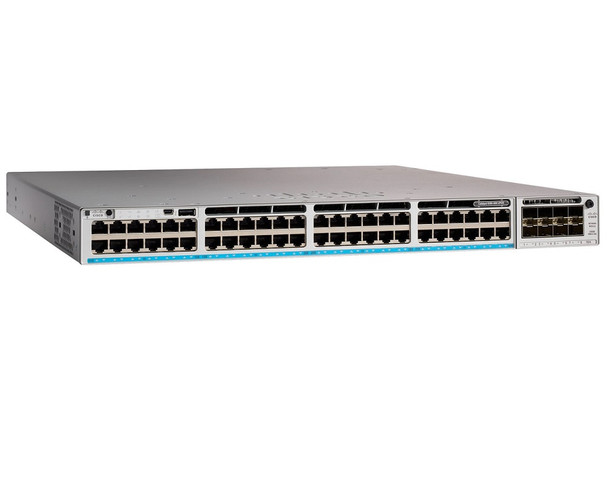

Cisco Catalyst 9300-M Switch Managed via Cisco Meraki Dashboard - Layer 3, 48 port PoE+ switch (48 x 1G copper ports; supports optional uplink network modules) - Ports and supports optional 10G or 40G modular uplink sold separately - Stack up to 8 switches with 480 Gbps of stacking bandwidth (stacking kit sold separately) - has 2 FRU power supply module slots (ships with 1 default power supply); 715 watt default primary AC power supply is PWR-C1-715WAC-P with a PoE budget of 437 watt - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-480 stacking option - Enterprise and Advanced licenses are available in 1, 3, 5, 7, and 10 year terms
The Catalyst 9300-M switch is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. They also deliver resiliency with fast stack convergence and StackPower, as well as provide Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security.
By pooling and distributing power across C9300-Ms using a series of StackPower cables, the StackPower provides simple and resilient power distribution across the stack.
Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE): PoE+
PoE Budget: 437 W
Performance: Switching capacity: 256 Gbps | Stacking bandwidth: 480 Gbps | Forwarding rate: 190.48 Mpps
Capacity: QoS queues: 8 | Member ports per aggregated link: up to 8 | VLANs with trunking: 4094
MAC Address Table Size: 32000 entries
Routing Protocol: IGMP, VRRP, OSPFv2, static IP routing, MSTP, RSTP, STP
Remote Management Protocol: SNMP, DHCP, IPv4, IPv6, Syslog
Features: VLAN support, port mirroring, Broadcast Storm Control, firmware upgradable, PVST, DHCP snooping, ACL support, QoS, DHCP server, DAI, STP Root Guard, UDLD, DHCP relay, Cisco StackPower technology, hot swappable 3 fans, network diagnostics, RBAC, push notification, STP BPDU Guard, STP loop guard, ZTP, DSCP to CoS Mutation, PIM, MAB, VLAN trunking, CDP, RPVST, sticky MAC, adaptive policy, usage statistics
Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power: AC 100-240 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 17.7 in x 1.7 in
Weight: 16.73 lbs
