Product Overview
Condition: NEW
Manufacturer Part #: C9300L-24P-4X-M

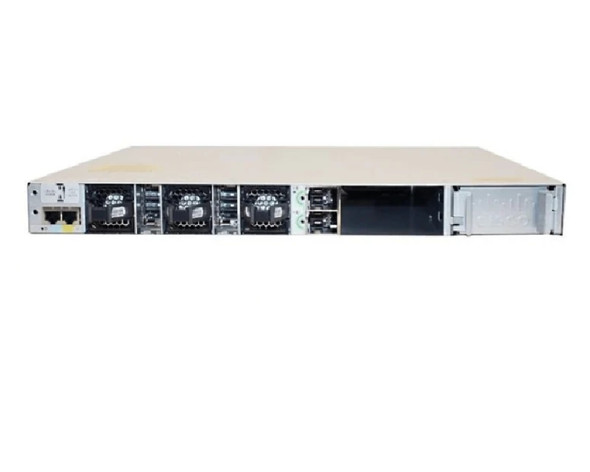

Cisco Catalyst 9300-M Switch Managed via Cisco Meraki Dashboard - Layer 3, 24 port PoE+ switch (24 x 1G copper ports; with 4 x 10G SFP+ fixed uplinks) - Stack up to 8 switches with 320 Gbps of stacking bandwidth (stacking kit sold separately) - has 2 FRU power supply module slots (ships with 1 default power supply); 715 watt default primary AC power supply is PWR-C1-715WAC-P with a PoE budget of 505 watt - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-320 stacking option - Enterprise and Advanced licenses are available in 1, 3, 5, 7, and 10 year terms
The Catalyst 9300-M switch is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. They also deliver resiliency with fast stack convergence and StackPower, as well as provide Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security.
By pooling and distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.
Network Device Type: Switch
Form Factor: 1RU
Connectivity Technology: Wired
Data Transfer Rate: 10 Gbps
Data Link Protocol: Gigabit Ethernet
Status Indicators: LED indicators
Processor / Type: None Processor
RAM / Total Installed Size: 8 GB
Flash Memory / Installed Size: 16 GB
Networking Compliant Standards: IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,802.1p,IEEE 802.3bt
Power / Device Type: Power Supply
Media Layer Supported: Layer 2 and Layer 3
Power / Provided (W): 715 Watt
Uplink Port: 4x10G/1G SFP+ uplinks
Power / Voltage Required: 100 to 240 VAC
MTBF: 340710 hours
Features: Flexible and dense uplink offerings; Mixed Stacking with Backward Compatibility ; Stack Power with Backward Compatibility; Secure Tunnel connectivity; Enhanced Application Hosting
