Product Overview
Condition: NEW
Availability: Inventory Available - But May Be Limited

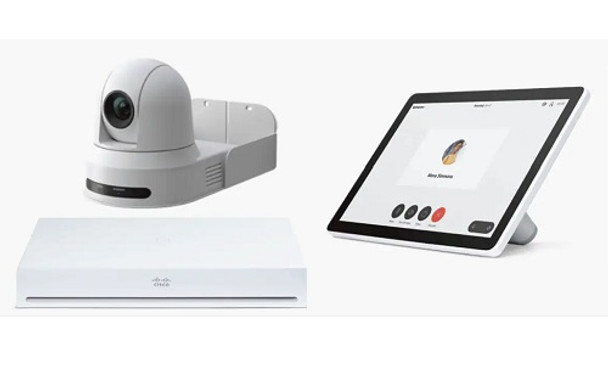

Cisco Webex Room Kit Plus Collaboration Room Endpoint - Video conferencing kit - integrator package with Codec Plus, Webex PTZ 4K Camera and 10 inch touch controller - Webex PTZ 4K Camera is a premium pan-tilt-zoom camera that provides superior video quality, powerful zoom capabilities, intelligent AI-based features, including PresenterTrack, and flexibility for optimized video collaboration experiences (CS-KITPLPTZ4K-K9)
The Cisco Webex Room Kit Plus PTZ (pan-tilt-zoom) integrator package is a powerful collaboration solution that integrates with flat-panel displays to bring more intelligence and versatility to your collaboration spaces. This package combines the performance of the Cisco Webex Room Kit Plus Codec (Codec Plus) and the flexibility of the pan-tilt-zoom camera to offer maximum flexibility in scenarios where you need special camera placement, objects close up, or wide pan-tilt-zoom capability.
The Room Kit Plus PTZ integrator package delivers an advanced audio and video experience that customers have come to expect from Cisco. In addition, the package provides flexibility for rooms that can benefit from a pan-tilt-zoom camera. The PTZ camera delivers 12x optical and 12x digital zoom. It also offers a high level of flexibility for custom and specialized integrations.
Device Type | Video conferencing kit |
VoIP Protocols | H.323 |
Voice Codecs | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Video Codecs | H.264 |
Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
IP Address Assignment | DHCP |
Security | IEEE 802.1X, H.235 v3 |
Network Protocols | HTTP, DNS, HTTPS, NTP |
Dimensions and Weight Details | Camera - Width 6.2 in Depth 7.9 in Height 7 in Weight 3.7 lbs ¦ Main system - Width 14.1 in Depth 5.6 in Height 1.7 in Weight 3.9 lbs |
Digital Signaling Protocol | H.323, SIP, H.460.18, H.460.19, BFCP |
Data Compression Protocol | H.264 |
Features | DTMF decoding |
Type | Digital video camera (color) - external |
Interface Type | HDMI |
Digital Video Capture Resolution | 1920 x 1080, 3840 x 2160 |
Optical Zoom | 20 |
Digital Zoom | 12 |
Camera Mechanical Design | Pan / tilt / zoom |
Features | Manual white balance, automatic brightness adjustment, auto white balance, Auto Focus, 70° field of view (horizontal), -20° / +20° tilt, -170° / +170° pan, manual brightness adjustment, F 2.0-3.8 lens aperture |
Supported Display Graphics | UHD (3840 x 2160) |
Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
Network / Transport Protocol | NTP, DHCP, DNS |
Features | DiffServ support, wall mountable, Quality of Service (QoS), SSH support, Audio Return Channel (ARC), 4K resolution support, security lock slot (cable lock sold separately), automatic gain control (AGC), 802.1x authentication, URI Dialing, administrator's password |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Interfaces | 2 x display / video - HDMI input - 19 pin HDMI Type A ¦ 1 x display / video - HDMI input - 19 pin HDMI Type A ¦ 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 3 x audio - input - mini-phone 3.5 mm ¦ 3 x network - RJ-45 ¦ 1 x USB 2.0 |
Compliant Standards | EMC, RoHS, WEEE, FCC CFR47 Part 15 B, NRTL, Directive 2011/65/EU, Directive 2002/96/EU, Directive 2014/30/EU, EN 62368-1, EN 55032 Class A, EN 55035 |
Power Device | Power supply - external |
Voltage Required | AC 100-240 V (50/60 Hz) |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 20 - 80% RH |
