Product Overview
Condition: NEWAvailability: End Of Life - Inventory May Be Limited
Last Day Of Support: June 30, 2024

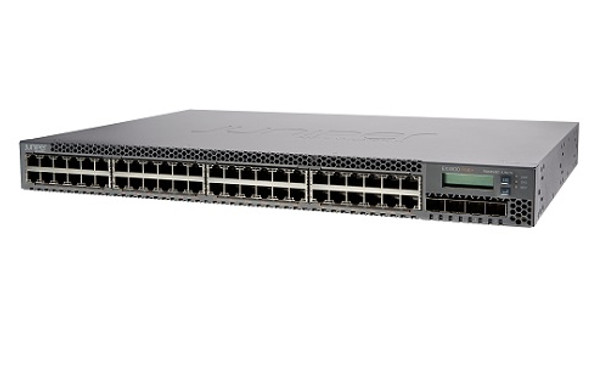

Juniper EX 3300 Network Switch - 48 port 10/100/1000BASE-T - 48 PoE+ ports - 4 SFP+ uplink ports (EX3300-48P)
The Juniper Networks EX3300 Ethernet Switch with Virtual Chassis technology provides enterprises with the flexibility and ease of management that previously was only available with higher end access switches.
| Device Type | Switch - 48 ports - stackable |
| Enclosure Type | Desktop 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Throughput: 130 Mpps |
| Capacity | Virtual interfaces (VLANs): 4096 ¦ IGMP snooping entries: 3000 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 6 |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2 |
| Encryption Algorithm | MD5, TLS, PEAP, TTLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, power over Ethernet (PoE), BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, store and forward, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, temperature sensor, Time Domain Reflectometry (TDR), PoE+, front to back airflow, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Processor | 1 x ARM: 1 GHz |
| RAM | 1 GB |
| Flash Memory | 1 GB |
| Status Indicators | LCD display |
| Interfaces | 4 x SFP/SFP+ ¦ 48 x 1000Base-T RJ-45 24 ports (PoE+) / 48 ports (PoE) |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 900 Watt |
| Width | 17.2 in |
| Depth | 12.2 in |
| Height | 1.7 in |
| Weight | 10.8 lbs |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
