Condition: NEW
Manufacturer Part #: IE-3100-8P2C-E

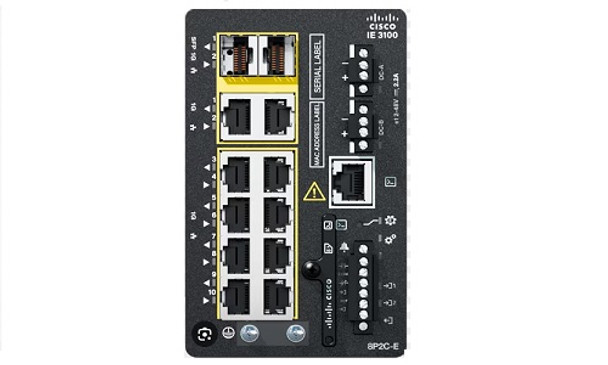

Cisco Catalyst IE3100 Rugged Switch - Total 10 ports - 8 x 10/100/1000 Mbps PoE+RJ45 Copper Ports with 2 x GE Combo Uplink Ports - 240 Watt PoE/PoE(+) budget - Network Essentials (perpetual) License - Dual DC Inputs; 20 watt power consumption - DIN Rail Mountable

Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.

Network Device Type: Switch

Connectivity Technology: Wired

Data Transfer Rate: 1 Gbps

Data Link Protocol: Gigabit Ethernet

Networking Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w

Power / Device Type: Power Supply

Media Layer Supported: Layer 2 and Layer 3

Uplink Port: 2 GE Combo uplinks

Power Consumption Operational: 20 Watt

Power / Voltage Required: 12V to 54V

MTBF: 682250 hours

Features: Robust industrial design; Full Gigabit Ethernet switch; Redundancy and Resiliency

Power Over Ethernet (PoE) Support: YES

PoE Power Consumption: 240W

MAC Address Table Size: 8000

Remote Management Protocol: SNMP; SSH; HTTPS; DHCP

Authentication Method: RADIUS and TACACS+

SFP Ports: 2

Interfaces: 8 10/100/1000 Mbps RJ45 Copper ports; 2 1GE SFP ports; 1 RS-232 (via RJ-45), 1 Micro USB

Dimensions (WxDxH): 3 in x 5.08 in x 5 in

Weight: 2.3 lbs
