Condition: NEW
Manufacturer Part #: JL095A

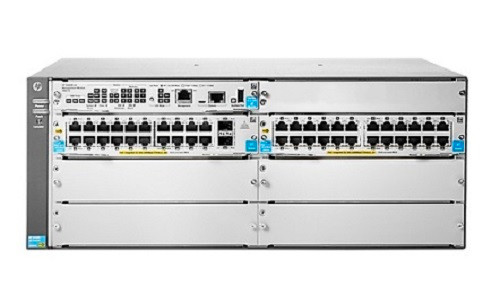

HPE Aruba 5406R v3 zl2 Switch - 16 x open 10GbE SFP+ transceiver slots, 4 x open module slots - 2 x open power supply slots: 1 minimum power supply is required and sold separately - Includes 1 fan tray - rack mountable

The HPE Aruba Networking 5400R zl2 Switch Series delivers enterprise-class resiliency with innovative flexibility and scalability for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. This modular series brings scalable aggregation with Virtual Switching Framework (VSF) stacking technology, hitless failover, and Fast Software Upgrade for 5400R VSF stacks. The advanced Layer 2 and 3 feature set includes OSPF, IPv6, IPv4 BGP, dynamic segregation, robust QoS and policy-based routing with no software licensing required.

Device Type: Switch - 16 ports - managed

Enclosure Type: Rack-mountable 4U

Subtype: 10 Gigabit Ethernet

Ports: 16 x 1 Gigabit / 10 Gigabit SFP+

Performance: Routing/switching capacity: 960 Gbps / Throughput: up to 571.4 Mpps / Switching fabric bandwidth: 1015 Gbps

Capacity: IPv4 routing table entries: 10000 / IPv6 routing table entries: 5000

MAC Address Table Size: 64K entries

Jumbo Frame Support: Yes

Routing Protocol: RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD

Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON

Features: Flow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), MACsec support

Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX

Dimensions (WxDxH): 17.5 in x 17.8 in x 6.9 in

Weight: 28.11 lbs
