Product Overview
Condition: NEW
Manufacturer Part #: JL320A

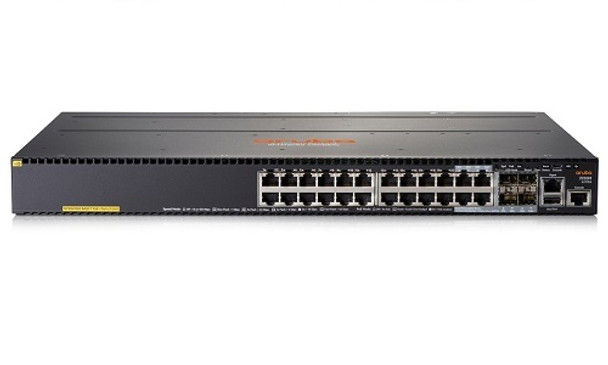

HPE Aruba 2930M 24G PoE+ 1-Slot Switch - managed - 20 x 10/100/1000 (PoE+), 4 x combo Gigabit SFP - rack mountable
The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch offices. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE+, robust QoS, SDN and requires no software licensing.
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 20 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 720 W
Performance: Throughput: 95.2 Mpps / Switching capacity: 128 Gbps / Latency (1 Gbps): 3.1 µs / Latency (10 Gbps): 3.4 µs / Latency (10 Mbps): 98.5 µs / Latency (100 Mbps): 11.8 µs
Capacity: IPv4 routing table entries: 2000 / IPv6 routing table entries: 1000 / RIP routes: 10000 / Static routes: 256
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 12.8 in x 1.7 in
Weight: 9.92 lbs
