Condition: NEW
Manufacturer Part #: JL625A

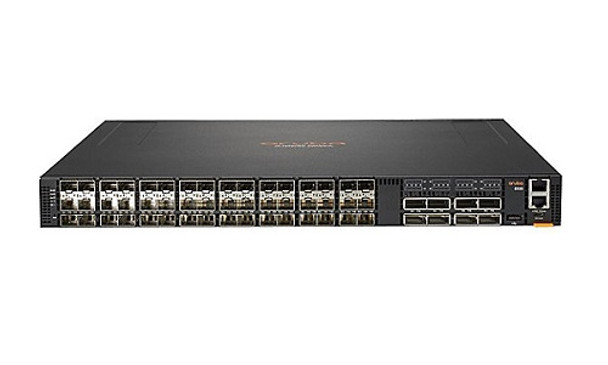

HPE Aruba 8325-48Y8C Switch - 48 x 1G/10G/25G SFP/SFP+/ SFP28 Ports and 8 x 40G/100GbE QSFP+/QSFP28 Ports - Bundle includes a base 8325-48Y8C switch (1 x JL635A), field-replaceable, hot-swappable Back-To-Front Fans (6 x JL629A) and Back-To-Front 650 watt Power Supply (2 x JL633A) - Rack mountable, mounting kit and console cable are not included in bundle

The Aruba CX 8325 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud and IoT era. These switches serve the needs of the next generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR). They provide over 6.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
The 8325 series includes industry-leading line rate ports 1/10/25GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) with connectivity in a compact 1U form factor. These switches offer a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE to 100GbE ports.

Device Type: Switch - 48 ports - L3 - managed

Enclosure Type: Rack-mountable 1U

Subtype: 100 Gigabit Ethernet

Ports: 48 x 10/25 Gigabit SFP+ / SFP28 and 8 x 40/100 Gigabit QSFP+ / QSFP28

Performance: Switching capacity: 6.4 Tbps / Throughput: 1.905 Mpps

Capacity: Virtual interfaces (VLANs) per port for 802.1q: 4096

Jumbo Frame Support: 9KB

Routing Protocol: OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv6 routing, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP, STP

Remote Management Protocol: SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP, NTP

Features: Routing, DHCP support, VPN support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, back to front airflow, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), fan tray, redundant hot swappable fans, packet storm protection, Strict Priority (SP), Loopback, VXLAN tunnel endpoints (VTEP) support, Protocol Independent Multicast (PIM)

Compliant Standards: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX

Power: AC 120/230 V (50/60 Hz)

Power Redundancy: Yes

Dimensions (WxDxH): 17.26 in x 21.1 in x 1.71 in

Weight: 22.05 lbs
