Condition: NEW
Manufacturer Part #: JL702C

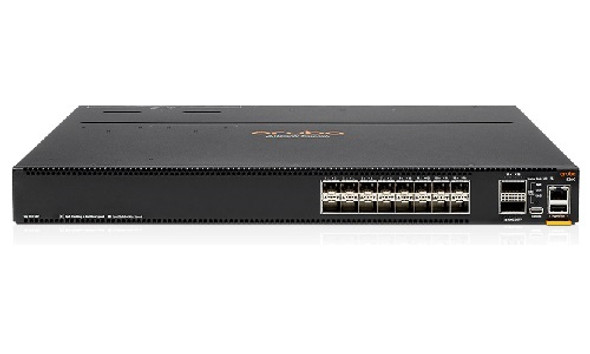

HPE Aruba Networking 8360-16Y2C v2 Switch - Supports up to 8 ports of 50G - Front to Back airflow - 16 x 1GbE/10GbE/25GbE SFP/SFP+/SFP28 Ports and 2 x 40GbE/100GbE QSFP+/QSFP28 Ports - Bundle Includes the 8360-16Y2C base switch (JL718C), 2 field-replaceable and hot-swappable power supplies (JL600A), and 3 field-replaceable and hot-swappable fans (JL714A) - horizontal surface mounting only; 2-post rack kit included

The HPE Aruba Networking CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8 Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps.

Network Device Type: Switch

Connectivity Technology: Wired

Data Transfer Rate: 100 Gbps

Data Link Protocol: Gigabit Ethernet

Processor / Type: Quad-Core

RAM / Total Installed Size: 16 GB

Flash Memory / Installed Size: 32 GB

Power / Device Type: Power Supply

Power / Installed Qty: 2

Max Power Consumption: 325 Watt

Power / Voltage Required: 100-127VAC, 200-240VAC

Features: MACsec secured connectivity over untrusted domains

Interfaces: 16 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) 2 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)

Routing Protocol: Layer 3 Advanced

Dimensions (WxDxH): 17.4 in x 16 in x 1.73 in

Weight: 17 lbs.
