Product Overview
Condition: NEW
Manufacturer Part #: JL815A

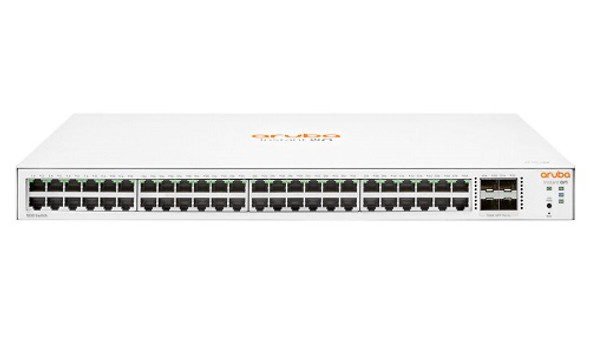

HPE Instant On 1830 Smart Managed Switch - 48 Port - 24 x 10/100/1000, 24 x 10/100/1000 PoE+ and 4 x Gigabit SFP Uplink Ports - 370 watt Class 4 PoE budget - Internal power supply - No extra licensing or subscription fees required - desktop and rack-mountable, includes 2-post rack kit
Plug-and-play switches that work together with Instant On APs right out of the box. This model is compatible with the AP12 Instant On Access Points
The Aruba Instant On 1830 Switch Series is an affordable wired solution for networks supporting IT, mobile, and cloud applications, easy to deploy. A smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes -- all at an affordable price point
Perfect for home offices, retail stores, small professional offices
Device Type: Switch - 48 ports - smart
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 370 W
Performance: Latency (100 Mbps): 5.2 µs | Latency (1 Gbps): 2.8 µs | Throughput: 77.37 Mpps | Switching capacity: 104 Gbps
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP
Remote Management Protocol: SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP
Features: Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Trusted Platform Module (TPM), Cable Diagnostics Function, LLDP support, DHCP client, Class of Service (CoS), cloud managed, 1.5MB packet buffer, Secure Copy (SCP), Link Aggregation, dual image support, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), BPDU Filter, loop protection, Global Storm Control, Port Scheduling
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 13.8 in x 1.7 in
Weight: 10.89 lbs
Localization: English / United States
