Condition: NEW
Manufacturer Ordering Part #: MBF2H516B-EEEOT
Nvidia SKU #: 900-9D205-0066-ST0

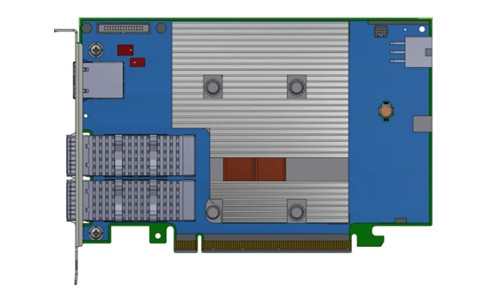

NVIDIA BlueField-2 BF2500 DPU Controller Card - Crypto Enabled - FHHL (Full-Height Half-Length) P-Series - 100GbE/EDR/HDR100 InfiniBand/Ethernet Dual-Port QSFP56 - PCIe Gen4 x16 - 16GB on-board DDR

BlueField-2 BF2500 DPU Controller features the second generation BlueField-2 I/O Processing Unit (IPU) – an innovative and high-performance programmable networking engine. The IPU integrates an array of eight powerful 64-bit Armv8 A72 cores interconnected by a coherent mesh with a DDR4 memory controller and a dual-port Ethernet network controller. Providing unmatched scalability and efficiency, the BF2500 DPU Controller is the ideal adapter to accelerate the most demanding workloads in datacenter, cloud, service provider and storage environments.
BlueField-2 I/O Processing Unit (IPU) is a highly integrated and efficient controller, optimized for NVMe storage systems, Network Functions Virtualization (NFV), Cloud, and Machine Learning workloads. BlueField-2 integrates all the discrete components of a storage system appliance into a single chip, including Arm core CPUs, PCIe switch, and a network controller, making it the premier solution for building Just-a-Bunch-Of-Flash (JBOF) systems, All-Flash-Array, and storage appliances for NVMe over Fabrics. With an integrated NVMe-oF offload accelerator, the BF2500 DPU Controller has a superior performance advantage over existing JBOF systems, significantly reducing storage transaction latency, while increasing IOPs (I/O operations per second).

Physical
Form Factor: FHHLDimensions: 167.65mm x 11.15mm (6.6in. x 4.37in.)
Connector: Dual Ethernet QSFP56 (copper and optical)

Protocol Support
InfiniBand: IBTA v1.3a
Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane)
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 550G Ethernet Consortium, 40GBASE-CR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X
Data Rate: InfiniBand SDR/DDR/QDR/FDR/EDR/HDR100/HDR | Ethernet 1/10/25/40/50/100 Gb/s
PCI Express Gen 3.0 / 4.0: SERDES @ 8.0GT/s / 16GT/s, 16 lanes (2.0 and 1.1 compatible)

Power
Voltage: 12V
Maximum power available through QSFP56 port: 5W

Environmental
Temperature: Operational 0°C to 55°C | Non-operational -40°C to 70°Ca
Humidity: Operational 10% to 85% relative humidity | Non-operational 10% to 90% relative humidity

Regulatory
Safety: CB / cTUVus / CE
EMC: CE / FCC / VCCI / ICES / RCM
RoHS: RoHS Compliant
