Condition: NEW
Manufacturer Ordering Part #: MBF2H516C-EESOT
Nvidia SKU #: 900-9D208-0076-ST2

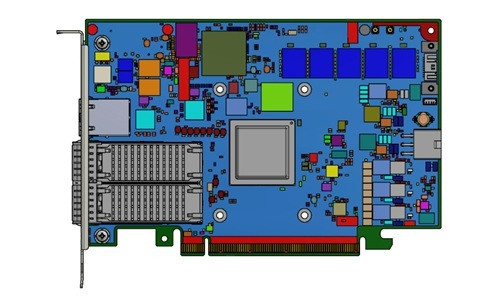

NVIDIA BlueField-2 Data Processing Unit (DPU) - Crypto Disabled, Secure Boot Enabled, with onboard BMC - FHHL (Full-Height Half-Length) P-Series - 8 Cores - 550MHz/2750MHz - 100GbE/EDR/HDR100 - Dual QSFP56 (copper and optical) - PCIe Support Gen 4.0 x16 - A 75W or greater system power supply through the PCIe x16 interface, and an additional 75W through the supplementary 6-pin ATX power supply connector - To power up these FHHL P-Series DPUs with x16 PCIe Gen 4 lanes, you need to connect a PCIe external power cable to the onboard 6-pin ATX connector. - 1x tall bracket (shipped assembled on the card)

The NVIDIA BlueField-2 data processing unit (DPU) is a data center infrastructure on a chip optimized for traditional enterprise, high-performance computing (HPC), and modern cloud workloads, delivering a broad set of accelerated software-definednetworking, storage, security, and management services. BlueField-2 DPU enables organizations to transform their IT infrastructures into state-of-the-art data centers that are accelerated, fully programmable and armed with "zero trust" security to prevent data breaches and cyber-attacks.

BlueField-2 DPU: BlueField-2 P-Series - 8 Cores - 550MHz/2750MHz | Crypto Disabled, Secure Boot Enabled, with onboard BMC

Physical
Card Dimensions (FHHL): 4.53 in. x 6.6 in. (115.15 mm x 167.65 mm)
Bracket Dimensions: 4.76 in. x 0.72 in. (121.0 mm x 18.4 mm)
Connector: Dual QSFP56 (copper and optical)

Interfaces
PCI Express 4.0: SERDES @ 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support
Data Rate: Ethernet 100/50/40/25/10/1 Gb/s | InfiniBand HDR100/EDR/FDR/QDR/DDR/SDR
Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
InfiniBand: IBTA v1.3(a) Auto-Negotiation: HDR100 (2 lane x 50Gb/s per lane), PAM4 256b/257b encoding and RS-FEC, FDR (14.0625Gb/s per lane), QDR (10Gb/s per lane), DDR (5Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane)

On-board Memory
Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s
128GB eMMC memory (effectively 40GB with high durability)

DPU Power Supply,Consumption and Airflow
Voltage: 12V
Maximum power available through QSFP56 port: 2.5W (per port)

Environmental
Temperature: Operational 0°C to 55°C | Non-operational -40°C to 70°C(b)
Humidity: Operational 10% to 85% relative humidity | Non-operational 10% to 90% relative humidity

Regulatory
Safety: CB / cTUVus / CE
EMC: CE / FCC / VCCI / ICES / RCM
RoHS: RoHS compliant
