Condition: NEW
Manufacturer Ordering Part #: MBF2M345A-HESOT
Nvidia SKU #: 900-9D250-0038-ST1

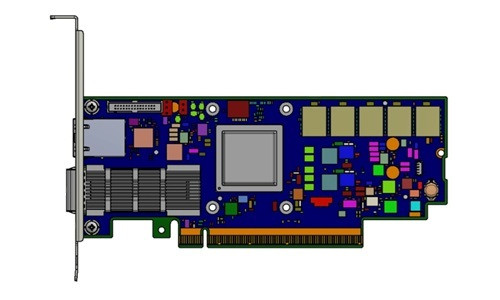

NVIDIA BlueField-2 Data Processing Unit (DPU) - Crypto Disabled, Secure Boot Enabled - Single-Slot HHHL (Half-Height Half-Length) E-Series - 8 Cores - 430MHz/2000MHz - 200GbE/HDR - 1x QSFP56 Port - PCIe Support Gen 4.0 x16 - 75W or greater system power supply through the PCIe x16 interface - 1x tall bracket (shipped assembled on the card) and 1x short bracket is included in the box (not assembled)

The NVIDIA BlueField-2 data processing unit (DPU) is a data center infrastructure on a chip optimized for traditional enterprise, high-performance computing (HPC), and modern cloud workloads, delivering a broad set of accelerated software-definednetworking, storage, security, and management services. BlueField-2 DPU enables organizations to transform their IT infrastructures into state-of-the-art data centers that are accelerated, fully programmable and armed with "zero trust" security to prevent data breaches and cyber-attacks.

BlueField-2 DPU: BlueField-2 E-Series - 8 Cores - 430MHz/2000MHz | Crypto Disabled, Secure Boot Enabled

Physical
Card Dimensions (HHHL): 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
Bracket Dimensions: 4.73 in. x 0.85 in. (121.0mm x 21.6mm)
Connector: Single QSFP56 (copper and optical)

Interfaces
PCI Express 4.0: SERDES @ 16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible)

Protocol Support
Data Rate: Ethernet 200/100/50/25/10/1 Gb/s | InfiniBand HDR/HDR100/EDR/FDR/QDR/DDR/SDR
Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2
InfiniBand: IBTA v1.3(b) Auto-Negotiation: HDR, HDR100 (2 lane x 50Gb/s per lane), EDR, FDR (14.0625Gb/s per lane), QDR (10Gb/s per lane), DDR (5Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane)

Onboard Memory: Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s | 64GB eMMC memory

DPU Power Supply, Consumption and Airflow
Voltage: 12V
Maximum power available through QSFP56 port: 6W

Environmental
Temperature: Operational 0°C to 55°C | Non-operational -40°C to 70°C(c)
Humidity: Operational 10% to 85% relative humidity | Non-operational 10% to 90% relative humidity

Regulatory
Safety: CB / cTUVus / CE
EMC: CE / FCC / VCCI / ICES / RCM
RoHS: RoHS compliant
