Condition: NEW
Manufacturer Part #: MCS7520
End OF Life / Last Day of Support: October 31, 2023
Replacement Part: MCS8500

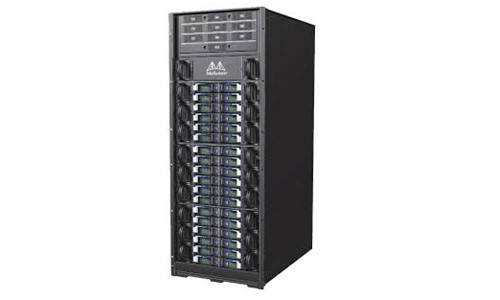

Nvidia Mellanox EDR InfiniBand Director Switch Chassis - 648 Ports, 130Tb/s - includes 20 fans and 10 power supplies (N+N) - 28U tall switch, but requires an extra 1U to install the shelf

The Mellanox CS7500 switch system provides the high performing fabric solution by delivering high bandwidth and low latency to enterprise data centers (EDC), high-performance computing (HPC) and embedded environments. Networks built with the CS7500 system can carry converged traffic with the combination of assured bandwidth and granular quality of service. Built with Mellanox's 6th and 7th generation of Switch-IB and Switch-IB 2 switch devices, CS7500 systems provide up to 100Gb/s full bidirectional bandwidth per port. With up to 648 ports in a 28U rack space.

Power and Environmental Specifications
Input Voltage: 180-240 VAC 50-60 Hz
Total Power Consumption EDR: Typical power with passive cables (ATIS): 6367.1W | Maximum: 13531W (includes 648 QSFP ports at 3.5W each)
Max Heat Output: 46,170 BTUs/hr
Temperature: Operating: 0° to 40°C | Non-operating: -40° to 70°C
Humidity: Operating: 10%-85% non-condensing

Protocol Support
Speed Protocol: InfiniBand: Auto-negotiation of 100Gb/s, 56Gb/s,40Gb/s, 20Gb/s, and 10Gb/s
Management: MLNX-OS and baseboard, performance, and device management agents for full InfiniBand in-band management
Data Rate: 100Gb/s per port
QoS: 8 InfiniBand virtual lanes for all ports

Regulatory Compliance
Safety: CB, CE, cTUVus, CU
EMC (Emissions): CE, FCC, ICES, RCM, VCCI

Switching Performance/Capacity
Switching capacity: 130 Tb/s
Switching performance: Simultaneous wire-speed any port to any port
Addressing: 48K unicast addresses max. per subnet and 15.5K multicast addresses per subnet
Leafs: Up to 18 leafs; 36-ports each
Spines: Up to 18 spine boards. All spines are needed for full bi-sectional configuration
Management modules: 2 available, 1 required for operation
Management CPU: x86
Power supplies: 10 power supplies standard
Leaf and management module fans: 20
Spine fan modules: 36

Physical Specifications
Size: 49" x 19" x 30" inches (The shelf adds 44.45 mm to the height)
Mounting: 19” Rack mount
# Of Spines Supported: 18
# Of Leafs Supported: 18
Weight: 214.6 kg (473.1 lb.) empty configuration (no leafs, spines, or management modules) | 369.5 kg (814.6 lb.) full configuration | 411.0 kg (906.1 lb.) shipped configuration
Accessory Weight: Rail kit: 11.5 kg (25.4 lb.) | Cable supporter (18 shelves): 10 kg (22.0 lb.) | Cable management: 5 kg (11.0 lb.)
Center of Gravity: CoGh: 595.9 mm (from base of chassis) | CoGw: 241.3 mm (from left side surface as one faces the spine side) | CoGd: 359.19 mm (from spine side surface)
Total Max. Airflow: 56.6 M3/min (2000 CFM)
SerDes Speeds: 10Gb/s, 20Gb/s, 40Gb/s, 56Gb/s, 100Gb/s per port
Connector Types: QSFP28
