Condition: NEW
Manufacturer Ordering Part #: MCX75310AAS-HEAT
Nvidia SKU #: 900-9X766-003N-ST0

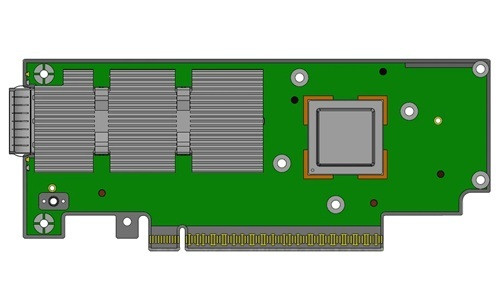

NVIDIA ConnectX-7 InfiniBand and Ethernet adapter card - Secure Boot Enabled, Crypto Disabled - HHHL (Half-Height Half-Length) - Single-port OSFP / support RHS (Riding Heatsink) cage - InfiniBand: NDR 200Gb/s (Default speed) / Ethernet: 200GbE - PCIe x16 Gen 4.0/5.0 @ SERDES 16GT/s/32GT/s - 1x tall bracket (shipped assembled on the card) and 1x short bracket is included in the box (not assembled)

The NVIDIA ConnectX-7 family of network adapters supports both the InfiniBand and Ethernet protocols. It enables a wide range of smart, scalable, and feature-rich networking solutions that address traditional enterprise needs up to the world's most demanding AI, scientific computing, and hyperscale cloud data center workloads.
ConnectX-7 network adapters are offered in two form factors and various flavors: stand-up PCIe and Open Compute Project (OCP) Spec 3.0 cards.
ConnectX-7 HCAs are available in various configurations; Single-port 400Gb/s or 200Gb/s, with octal small form-factor pluggable (OSFP) connectors or Dual-port 100 or 200Gb/s with quad small form-factor pluggable (QSFP112) connectors on PCIe standup half-height, half-length (HHHL) form factor, with options for NVIDIA Socket Direct. Also available, Dual-port 50/25 GbE with quad small form-factor pluggable (SFP56) connectors on PCIe standup full-height, half-length (FHHL) form factor, with timing capabilities.

Physical
Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)

Interfaces
PCI Express Interface: Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible)
Networking Port: Single OSFP InfiniBand and Ethernet

Data Rate
InfiniBand (Default): NDR200/HDR/HDR100/EDR/FDR/SDR
Ethernet: 200/100/50/40/10/1 Gb/s Ethernet

Protocol Support
InfiniBand: IBTA v1.5
Auto-Negotiation: NDR200 ( 2 lanes x 100Gb/s per lane ) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane)
Ethernet Protocols supported by the electrical interface
200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI

Capabilities
Secure Boot Enabled, Crypto Disabled

Electrical and Thermal Specifications
Voltage: 12V, 3.3VAUX
Maximum current: 100mA
Typical power with passive cables in PCIe Gen 5.0 x16: 16.7W

Environmental
Temperature: Operational 0°C to 55°C | Non-operational -40°C to 70°C
Humidity: Operational 10% to 85% relative humidity | Non-operational 10% to 90% relative humidity
Altitude (Operational): 3050m

Regulatory
Safety: CB / cTUVus / CE
EMC: CE / FCC / VCCI / ICES / RCM / KC
RoHS: RoHS Compliant
