Product Overview
Condition: NEW
Manufacturer Part #: MS250-48-HW

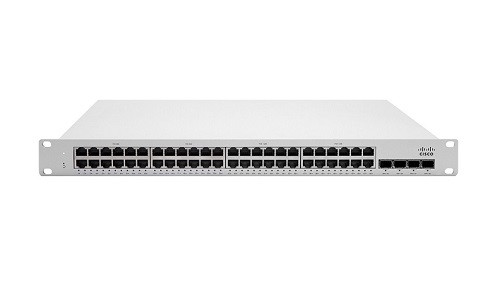

Cisco Meraki MS250 Stackable Switch - Managed via Cisco Meraki Dashboard - Total 52 ports - 48 x 1GbE RJ45 Ports and 4 x 10 GbE SFP+ Uplinks - 2x Dedicated Stack Ports providing 80G of Stacking bandwidth - Fixed internal fan - Dual hot swap power supply (1 x MA-PWR-250WAC PSU included) - Rack mountable
The Cisco Meraki MS250 series switches provide reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model, redundancy and performance are guaranteed. This family also supports redundant, field-replaceable power supplies for mission-critical networks.
With 5 different models, capable of providing up to 740W of PoE+ power over a variety of port densities, including SFP+ capable uplinks, the MS250 line is fully ready to support branch and small campus infrastructure deployments.
Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x SFP+
Performance: Stacking bandwidth: 80 Gbps | Switching capacity: 176 Gbps
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9600 bytes
Routing Protocol: IGMP, VRRP, OSPFv2
Remote Management Protocol: SNMP, HTTP
Features: Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, Broadcast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, LLDP support, DHCP relay, Port Security, DHCP client, e-mail notification, Zero Touch Auto Provisioning, static routing, Multicast filtering function, 802.1x authentication, cable test, Bridge protocol data unit (BPDU), Link Aggregation, Role-Based Access Control (RBAC), push notification, Root Guard
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
Power: AC 120/230 V (40 - 60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 19.1 in x 20.3 in x 1.7 in
Weight: 11.55 lbs
