Product Overview
Condition: NEW
Manufacturer Part #: MS320-48-HW
End of Life / Last Day Of Support: March 31, 2024
Replacement Part: MS250-48-HW

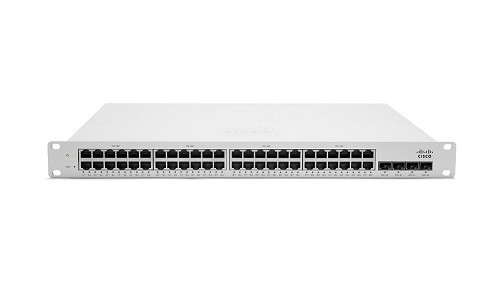

Cisco Meraki MS320 Compact Switch - Managed via the Web with the Meraki cloud management platform - Total 52 ports - 48 x 1GbE RJ45 Ports and 4 x 10 GbE SFP+ Uplinks - Default power supply MA-PWR-250WAC - Desktop or rack mountable
The MS320 is a powerful switch designed for branch access, with high-speed connectivity, high availability, PoE+, and optional redundant power supplies.
The Cisco Meraki MS brings the benefits of the cloud to networks of all sizes: simplified management, reduced complexity, network wide visibility and control, with lower operational cost for campus and branch deployments. Mission-critical features -- like deep, Layer 7 application visibility, network topology, virtual stacking, QoS for business critical applications, 802.1X access control, and more -- are present in all models.
Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x SFP+
Performance: Stacking bandwidth: 80 Gbps | Switching capacity: 176 Gbps
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9600 bytes
Routing Protocol: IGMP, VRRP, OSPFv2
Remote Management Protocol: SNMP, HTTP
Features: Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, Broadcast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, LLDP support, DHCP relay, Port Security, DHCP client, e-mail notification, Zero Touch Auto Provisioning, static routing, Multicast filtering function, 802.1x authentication, cable test, Bridge protocol data unit (BPDU), Link Aggregation, Role-Based Access Control (RBAC), push notification, Root Guard Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
Power: AC 120/230 V (40 - 60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 19.1 in x 20.3 in x 1.7 in
Weight: 11.55 lbs
