Product Overview
Condition: NEW
Manufacturer Part #: R8N87A

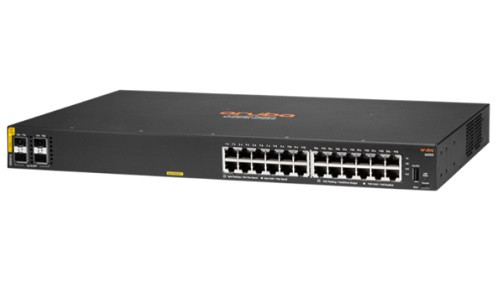

HPE Aruba CX 6000 Switch - 24 x ports 10/100/1000BASE-T and 4 x 1G SFP Ports - Supports PoE Standards IEEE 802.3af, 802.3at - Internal (fixed) power supply, fixed fans - Up to 370W of Class 4 PoE - Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included) or horizontal surface mounting
The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 740W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces.
The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing.
Power consumption: Max Power (w/o PoE): 32.7W | Max Power (w/ PoE): 455W
Input voltage: 100-127 VAC / 200-240 VAC
Ports: 24x ports 10/100/1000BASE-T ports 4x 1G SFP ports
Latency: 1 Gbps: 1.5 ?Sec
Routing capabilities: Static
Switching capacity: 56 Gbps
Throughput: 41.6 Mpps
Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
PoE capability: 370W Class 4 PoE/PoE+
Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) | derate -1°C for every 1000 ft (305 m) from 5000 ft | (1.5 km) to 10000 ft (3.0 km)
Weight: 4.2 kg (9.24 lbs)
Dimensions: 4.4 x 44.2 x 26.8 cm (1.73 x 17.4 x 10.56 in)
