Condition: NEW
Manufacturer Part #: R9W96A
Condition: NEW
Availability: Call For Availability

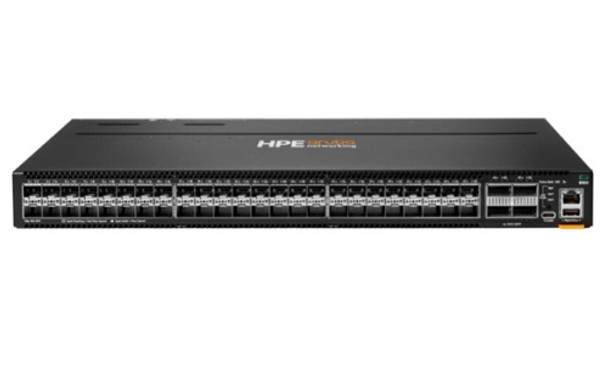

HPE Aruba CX 8100 Switch - 48 x 1 GbE/10 GbE SFP/SFP+ Ports and 4 x 40 GbE/100 GbE QSFP+/QSFP28 Uplink Ports - This is a spare unit only / field-replaceable, hot-swappable power supplies (JL600A or JL712A) and fans (JL714A or JL715A) are not included and must be ordered separately

The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT.
The CX 8100 switches are based on HPE Aruba Networking CX Switch Operating System (AOS-CX) that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are available in every switch.

Device Type: Switch - 48 ports - L3 - managed

Enclosure Type: Rack-mountable 1U

Subtype: 10 Gigabit Ethernet

Ports: 48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28

Performance: Switching capacity: 1.76 Tbps

Capacity: IPv4 ACL entries (ingress): 16384 | IPv6 ACL entries (ingress): 4096 | MAC ACL entries (ingress): 16384 | IPv4 ACL entries (egress): 2048 | IPv6 ACL entries (egress): 512 | MAC ACL entries (egress): 2048 | Maximum number of VLANs: 1024 | IGMP groups: 4000 | MLD groups: 4000 | Packet buffer size: 32 MB | IPv4 routes (Multicast): 4096 | IPv6 routes (Multicast): 4096 | Link aggregation groups: 54 | IPv4 routes (Unicast): 24576 | IPv6 routes (Unicast): 12288

MAC Address Table Size: 147456 entries

Jumbo Frame Support: 9000 bytes

Routing Protocol: BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD

Remote Management Protocol: SNMP 2, SNMP, SNMP 3, MIB

Features: Layer 2 switching, port mirroring, sFlow, QoS, ECMP, BFD, DCB, GRE, ERPS, RoCE, BPDU, RoCE v2, OSPF, NTP, policy based routing, RPVST+, UDLD, layer 3 routing, Address Resolution Protocol, Aruba VSX, Dynamic VXLAN with BGP-EVPN, BGP-4

Compliant Standards: IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by

Power: AC 100-127/200-240 V (50/60 Hz)

Dimensions (WxDxH): 17.4 in x 16 in x 1.7 in

Weight: 18.5 lbs

System Requirements: AOS-CX
