Condition: NEW
Manufacturer Part #: SM-X-16FXS/2FXO

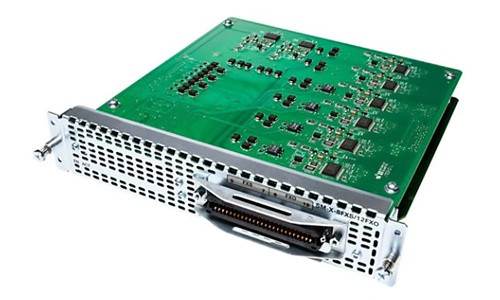

Cisco High-Density Analog Voice and Fax Service Module - Single-wide high density analog voice service module - 16x FXS Ports and 2x FXO Ports - On-board Digital Signal Processor (DSP) - For use with the ISR 4000 series routers and Catalyst 8000 series Edge Platforms

The Cisco High-Density Analog Voice and Fax Service Modules provide enterprises, managed services providers, and service providers the ability to directly connect public-switched telephone networks (PSTNs) and existing telephony equipment to Cisco 4000 Series Integrated Services Routers (ISRs). These fixed-port (FXS and FXO) modules provide Dual-Tone Multifrequency (DTMF) detection, voice compression and decompression, call progress tone generation, Voice Activity Detection (VAD), echo cancellation, and adaptive jitter buffering
The FXO port is used to connect to PBX or key systems, or to provide off-premises connections to the PSTN. It supports battery reversal detection and caller ID. The FXO port is also used to connect to analog Centralized Automatic Message Accounting (CAMA) trunks to provide dedicated E-911 service (in North America only).
The FXS port is used to connect analog phones, modems, fax machines, and speaker phones to an enterprise IP voice system, so you can use them as extensions to your Cisco or third-party IP call-control system. Having these devices tightly integrated with the IP-based phone system is advantageous for increased manageability, scalability, and cost-effectiveness. The Direct Inward Dialing (DID) port is used to provide off-premises DID connection from the central office. It serves only incoming calls from the PSTN. Caller ID is not supported in DID mode.

Product Type: Analog Voice Service Module

Form Factor: Plug-In Module

Network / Interface Type: RJ-21

Width: 7.44 Inch

Depth: 7.6 Inch

Height: 1.58 Inch
