Product Overview
Condition: NEW
Availability: Inventory Available - But May Be Limited

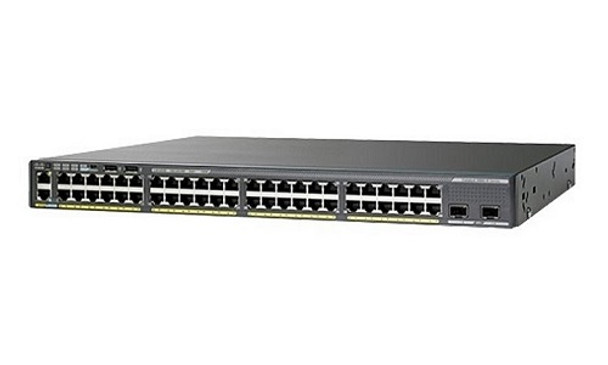

Cisco 2960XR Ethernet Switch - 48 port Layer 3 switch - 12 x PoE - 12 x PoE+ - 24 x RJ-45 - 2 x Expansion Slots - 10/100/1000Base-T (WS-C2960XR-48LPD-I)
Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS Software features.
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 216 Gbps ¦ Forwarding performance: 130.9 Mpps |
| Capacity | Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 2 switching, power over Ethernet (PoE), auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), Cisco FlexStack Plus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Processor | : 600 MHz |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity |
| Interfaces | 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 12 ports (PoE+) / 48 ports (PoE) - 30 W ¦ 1 x console SFP+ - RJ-45 ¦ 1 x mini-USB Type B management ¦ 2 x USB Type A ¦ 1 x 1000Base-TX RJ-45 management ¦ 2 x SFP+ uplink |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 640 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Features | Redundant Power System (RPS) connector |
| MTBF | 275,430 hours |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 300386 |
| Software Included | Cisco IOS IP Lite |
| Width | 17.5 in |
| Depth | 16.1 in |
| Height | 1.8 in |
| Weight | 14.11 lbs |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
