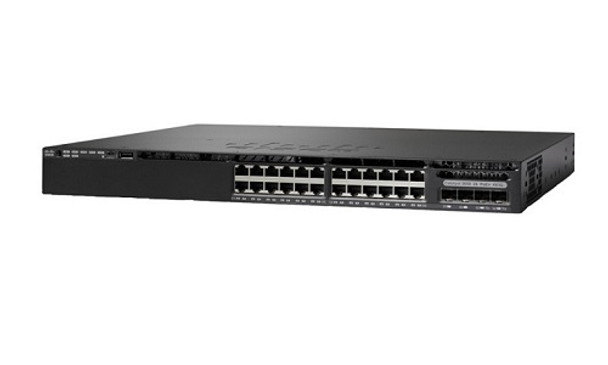

WS-C3650-24PD-S Cisco Catalyst 3650 Network Switch (New)

Write a Review
Ask Questions
WS-C3650-24PD-S Cisco Catalyst 3650 Network Switch (New)

WS-C3650-24PD-S Cisco Catalyst 3650 Network Switch (New)

$993.00
  • SKU: WS-C3650-24PD-S
  • UPC: 882658593666
  • MPN: WS-C3650-24PD-S
  • Condition: New
  • Availability: Limited Stock Available
Availability: Limited Stock Available
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Condition: NEW
Availability: Inventory Available - But May Be Limited

Cisco 3650 Ethernet Switch - 24 ports w/Optional Stacking - 24 x 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, 640WAC power supply, IP Base feature set (WS-C3650-24PD-S)

Cisco Catalyst 3650 series switches are enterprise-class, stackable access switches that provide the foundation for full wired and wireless convergence on a single platform.

Facilitate wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. Cisco Catalyst 3650 series switches are powered by the Cisco Unified Access Data Plane (UADP) ASIC and built on advanced Cisco StackWise-160 technology.

General
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 390 W
Performance Switching capacity: 88 Gbps ¦ Forwarding performance: 68.45 Mpps
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol RIP-1, RIP-2, static IP routing, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, system, active, status, PoE
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 2 x 10GBase-X SFP+ uplink
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 640 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
MTBF 528,280 hours
Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software / System Requirements
Software Included Cisco IOS IP Base
Dimensions & Weight
Width 17.5 in
Depth 17.6 in
Height 1.7 in
Weight 16.01 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 - 96% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
