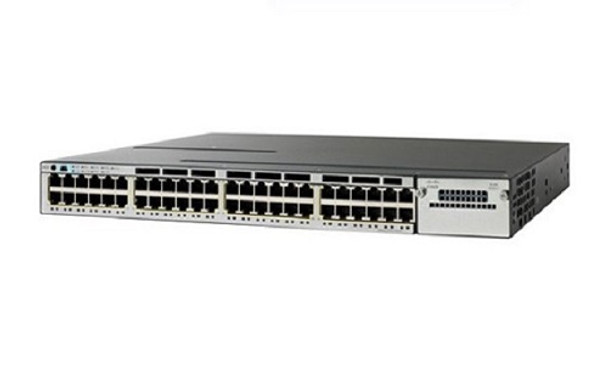

WS-C3850-48U-L Cisco Catalyst 3850 Network Switch (New)

Write a Review
Ask Questions
WS-C3850-48U-L Cisco Catalyst 3850 Network Switch (New)

WS-C3850-48U-L Cisco Catalyst 3850 Network Switch (New)

$1,573.00
  • SKU: WS-C3850-48U-L
  • UPC: 882658547881
  • MPN: WS-C3850-48U-L
  • Condition: New
  • Availability: Limited Stock Available
Availability: Limited Stock Available
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Condition: NEW
Availability: Inventory Available - But May Be Limited

Cisco 3850 Ethernet Switch - 48 Ports - 48 x 10/100/1000 Ethernet UPOE, 1100WAC power supply, LAN Base feature set - StackPower Cables NOT Included (WS-C3850-48U L)

Cisco unified access is the convergence of the wired and wireless networks into one physical infrastructure. It offers greater intelligence, simplicity, performance, and open interfaces. One network starts with Cisco Catalyst 3850 switches, which combine wired and wireless by supporting wireless tunnel termination and full wireless LAN controller functionality.

The Catalyst 3850 series switches are Ethernet switches to which you can connect devices such as Cisco IP phones, Cisco wireless access points, workstations, and other network devices such as servers, routers, and other switches. The Catalyst 3850 switches support stacking through Cisco StackWise-480 technology and power management through StackPower.

General
Device Type Switch - 48 ports - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 800 W
Performance Switching capacity: 176 Gbps ¦ Stacking bandwidth: 480 Gbps
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, universal power over Ethernet (UPOE), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, system, status, PoE
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 UPOE - 60 W ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Power
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
MTBF 205,110 hours
Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
Software / System Requirements
Software Included Cisco IOS LAN Base
Dimensions & Weight
Width 17.5 in
Depth 17.7 in
Height 1.8 in
Weight 17.64 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
