Name: JL376A HP Aruba 8400 Switch Chassis Bundle (New)
Brand: Hewlett Packard
SKU: JL376A
Availability: OutOfStock

Product Overview

Condition: NEW
Availability: Contact For Price And Availability

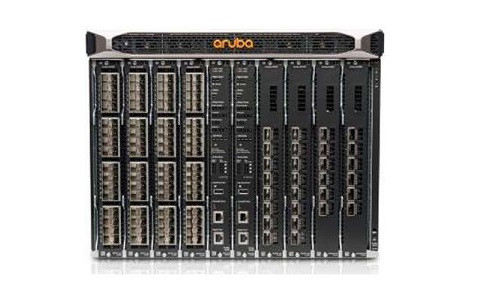

HPE Aruba 8400 Switch Chassis Bundle - includes the Aruba 8400 8-slot chassis, 1 x management module, 3 x PSU, 2 x 8400X Fabric Modules, 1 x 32 port 10G Module, 1 x 8 port 40G Module (JL376A)

General

Device Type	Switch - 32 ports - with 2x 8400X FabricModules, 1x Management Module, 1x 32-port 10G Module, 1x 6-port 40/100G Module
Enclosure Type	Rack-mountable 8U
Subtype	10 Gigabit Ethernet
Ports	32 x 10 Gigabit Ethernet + 6 x 40 Gigabit / 100 Gigabit QSFP28
Performance	Switching capacity: 19.2 Tbps ¦ Throughput: 7.142 Bpps
Features	Fan tray

Expansion / Connectivity

Interfaces	32 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ ¦ 6 x 100Gbit/40Gbit LAN QSFP28
Expansion Slots	2 (total) / 1 (free) x MPU ¦ 3 (total) / 1 (free) x fabric module slot ¦ 8 (total) / 6 (free) x expansion slot
Installed Modules Qty (Max)	5 (installed) / 13 (max)

Power

Power Device	Internal power supply - hot-plug
Installed Qty	3 (installed) / 4 (max)
Power Redundancy	Yes
Power Redundancy Scheme	N+1

Miscellaneous

Compliant Standards

CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, FCC, UL 60950-1, VCCI Class A, GB 9254, AS/NZS CISPR 22, IEC 60950-1:2005 Second Edition, CSA 22.2 No. 60950-1, EN 60950-1:2006+A1:2010+A2:2013+A11:2009+A12:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55022 Class A, FCC CFR47 Part 15 B Class A, IEC 60825:2007, UL 62368-1 Second Edition, CISPR 32:2012 Class A, EN 55032:2012 Class A, EN 62368-1:2014

Dimensions and Weight

Width	17.4 in
Depth	26 in
Height	13.8 in
Weight	163.14 lbs

Environmental Parameters

Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Storage	5 - 95% (non-condensing)
