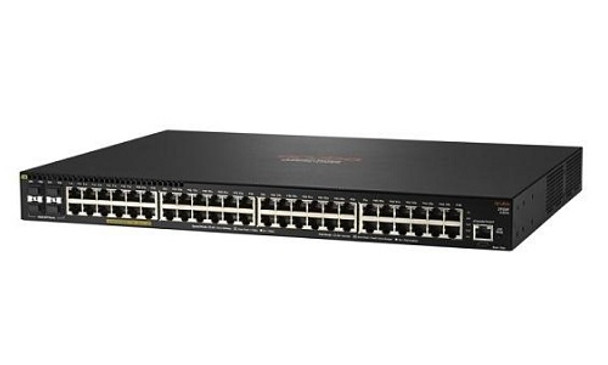

JL559A HP Aruba 2930F 48G PoE+ 4SFP+ TAA Switch (New)
Adding to cart… The item has been added

Product Overview

Condition: NEW
Availability: Inventory Available - But May Be Limited

HPE Aruba 2930F 48G PoE+ 4SFP+ TAA Switch - L3 - managed - 48 x 10/100/1000 (PoE+) and 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - PoE+ (740 W) - rack-mountable (JL559A)

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

General
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Throughput: 112 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
Capacity Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm MD5, SSL
Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor 1 x ARM Cortex-A9: 1.016 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console)
Expansion Slots 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 4 (max)
Power
Power Device Internal power supply
Installed Qty 1
Voltage Required AC 120/230 V (50/60 Hz)
80 PLUS Certification 80 PLUS Silver
Miscellaneous
Included Accessories Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC60950-1:2005+A1:2009+A2:2013
TAA Compliant Yes
Software / System Requirements
Software Included Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Dimensions and Weight
Width 17.4 in
Depth 12 in
Height 1.7 in
Weight 9.83 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 15 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 15 - 90% (non-condensing)
