JL681A HP Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch (New)

Hewlett Packard

Write a Review
$233.00
SKU:
JL681A
UPC:
190017355221
Condition:
New
Availability:
Inventory Available - May Be Limited
Adding to cart… The item has been added

Product Overview

Condition: NEW
Manufacturer Part #: JL681A

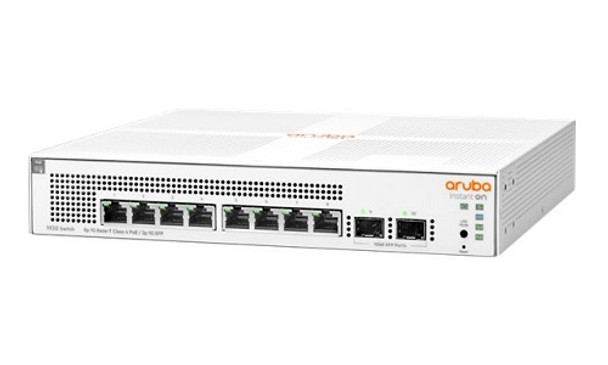

HPE Aruba Instant On 1930 Switch - managed - 8 ports - 8 x 10/100/1000 (PoE+) Gigabit Copper Ports and 2 x Gigabit SFP Uplinks Ports - 124 Watt Class 4 PoE - Internal power supply - rack-mountable

This model is compatible with the AP11, AP12, AP15, AP22 and AP25 Instant On Access Points

The Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.

Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What's more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.

Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. And all of this is included in the price of the hardware--there are no hidden subscription or licensing fees.

Device Type: Switch - 10 ports - L3 - managed

Enclosure Type: Rack-mountable 1U

Subtype: Gigabit Ethernet

Ports: 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP

Power Over Ethernet (PoE): PoE

PoE Budget: 124 W

Performance: Switching capacity: 20 Gbps | Throughput: 14.88 Mpps | Latency (100 Mbps): 5.2 µs | Latency (1 Gbps): 3 µs

Capacity: Link aggregation ports: 8 | IPv4 routes (static): 32 | VLANs supported: 256 | Access Control Entries (ACEs) per ACL: 480 | Packet buffer size: 1.5 MB

MAC Address Table Size: 8000 entries

Jumbo Frame Support: 9216 bytes

Routing Protocol: Static IP routing

Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS

Features: Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af

Power: AC 120/230 V (50/60 Hz)

Dimensions (WxDxH): 10 in x 10 in x 1.7 in

Weight: 2.56 lbs

Localization: English / United States
