Product Overview
Condition: NEWAvailability: Inventory Available - But May Be Limited

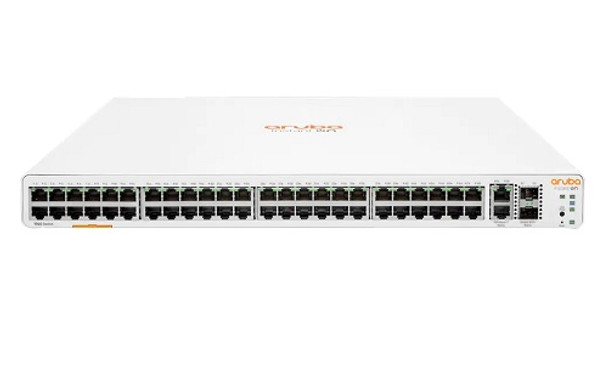

HPE Aruba Instant On 1960 Smart Managed Stackable Switch - 48 Port - 48 x 10/100/1000 Mbps with 2 x 10 Gigabit SFP+ and 2 x 10GBase-T Uplink Ports - Internal power supply - No extra licensing or subscription fees required - desktop and rack-mountable, includes 2-post rack kit (JL808A)
Plug-and-play switches that work together with Instant On APs right out of the box. This model is compatible with AP15 Instant On Access Points
The Aruba Instant On 1960 Smart-managed layer 2+ Ethernet switch series is an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications.
Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.
True Stacking allows for redundancy while making it simple to configure, manage, and troubleshoot multiple switches as a single entity
Perfect for training centers, healthcare facilities and tech start-ups
| Device Type | Switch - 52 ports - L2+ - smart - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet |
| Performance | Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps |
| Capacity | IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Trusted Platform Module (TPM), Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, Class of Service (CoS), cloud managed, IP source guard, Internet Control Message Protocol (ICMP), dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, Weighted Round Robin (WRR), ARP filtering, DSCP prioritization, auto voice VLAN, loop protection |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Processor | 1: 800 MHz |
| Status Indicators | Port status |
| Interfaces | 48 x Gigabit LAN RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 2 x 10Gbit LAN RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 80 Watt |
| Rack Mounting Kit | Included |
| MTBF | 109.4 years |
| Compliant Standards | Plug and Play, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 62368-1 Second Edition, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, EN 55032/CISPR 32 Class A, CISPR 35, IEC 62368-1 Second Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, EN/IEC 60825-1:2014 Class 4 |
| Width | 17.4 in |
| Depth | 13.8 in |
| Height | 1.7 in |
| Weight | 9.7 lbs |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (non-condensing) |
