Product Overview
Condition: NEWAvailability: Inventory Available - But May Be Limited

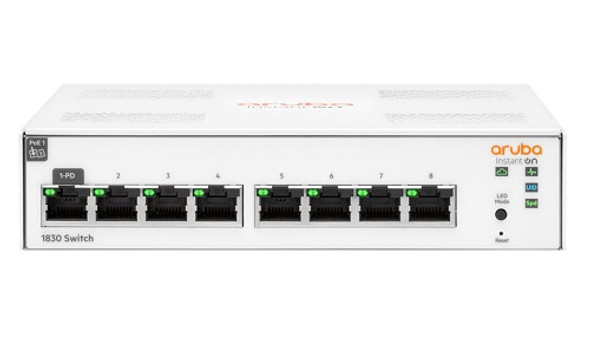

HPE Aruba Instant On 1830 Smart Managed Switch - 8 Ports - 4 x 10/100/1000 and 4 x 10/100/1000 PoE+ Ports - 65 watt Class 4 PoE budget - Fanless - Internal power supply - No extra licensing or subscription fees required - desktop and rack-mountable, includes 2-post rack kit (JL811A)
Plug-and-play switches that work together with Instant On APs right out of the box. This model is compatible with the AP12 Instant On Access Points
The Aruba Instant On 1830 Switch Series is an affordable wired solution for networks supporting IT, mobile, and cloud applications, easy to deploy. A smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes -- all at an affordable price point
Perfect for home offices, retail stores, small professional offices
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 65 W |
| Performance | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 11.9 Mpps ¦ Switching capacity: 16 Gbps |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMP |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Trusted Platform Module (TPM), Cable Diagnostics Function, fanless, LLDP support, DHCP client, Class of Service (CoS), cloud managed, 1.5MB packet buffer, Secure Copy (SCP), Link Aggregation, dual image support, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), BPDU Filter, loop protection, Global Storm Control, Port Scheduling |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor | 1 x ARM: 800 MHz |
| RAM | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Port status, port duplex mode, link/activity, speed |
| Interfaces | 4 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T RJ-45 PoE+ |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 86.07 Watt |
| MTBF | 105.9 years |
| Compliant Standards | IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018 |
| Width | 9.6 in |
| Depth | 7.7 in |
| Height | 1.7 in |
| Weight | 3.4 lbs |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (non-condensing) |
