Condition: NEW
Manufacturer Part #: JL814A

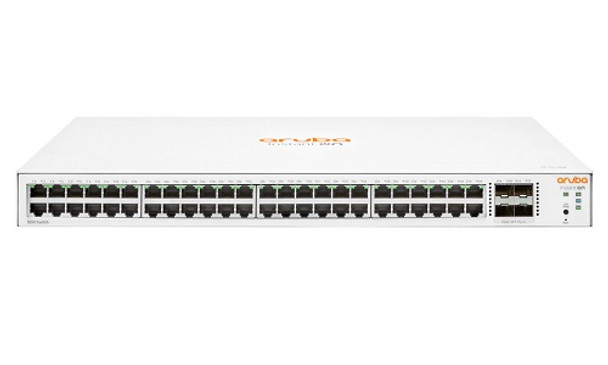

HPE Instant On 1830 Smart Managed Switch - 48 x RJ-45 autosensing 10/100/1000 Ports and 4 x 1GbE SFP Uplink Ports - Internal power supply - No extra licensing or subscription fees required - Supports mounting in standard 19 inch rack, on the wall, and table top or under table

Plug-and-play switches that work together with Instant On APs right out of the box.

The Aruba Instant On 1830 Switch Series is an affordable wired solution for networks supporting IT, mobile, and cloud applications, easy to deploy. A smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes -- all at an affordable price point

Perfect for home offices, retail stores, small professional offices

Device Type: Switch - 48 ports - smart

Enclosure Type: Rack-mountable 1U

Subtype: Gigabit Ethernet

Ports: 48 x 10/100/1000 and 4 x Gigabit SFP

Performance: Latency (100 Mbps): 5.2 µs | Latency (1 Gbps): 2.8 µs | Throughput: 77.37 Mpps | Switching capacity: 104 Gbps

MAC Address Table Size: 16000 entries

Jumbo Frame Support: 9216 bytes

Routing Protocol: IGMPv2, IGMP

Remote Management Protocol: SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP

Features: Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Trusted Platform Module (TPM), Cable Diagnostics Function, LLDP support, DHCP client, Class of Service (CoS), cloud managed, 1.5MB packet buffer, Secure Copy (SCP), Link Aggregation, dual image support, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), BPDU Filter, loop protection, Global Storm Control, Port Scheduling

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az

Power: AC 100-240 V (50/60 Hz)

Dimensions (WxDxH): 17.4 in x 10 in x 1.7 in

Weight: 7.8 lbs
