Product Overview
Condition: NEW
Availability: Contact For Price And Availability

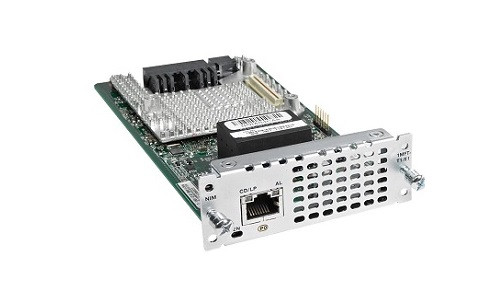

Cisco WAN Network Interface Module - Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module - Expansion module - T-1/E-1 (NIM-1MFT-T1/E1)
The Cisco Fourth-Generation T1/E1 Multiflex Trunk Voice and WAN Network Interface Modules (NIMs) support data and voice applications on the Cisco 4451-X integrated services routers. These cards combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions to provide unparalleled flexibility, versatility, and investment protection through their many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface.
The T1/E1 modules contain an onboard Cisco Packet Voice Digital Signal Processor Module 4 (PVDM4) slot, which requires a fourth-generation PVDM4 module. A PVDM4 on the T1/E1 module is necessary for the voice features. The PVDM4 also provides for echo cancellation of up to 128-ms echo-tail length for demanding network conditions.
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Transfer Rate | 2.048 Mbps |
| Remote Management Protocol | SNMP, Telnet |
| Line Rate | T-1/E-1 |
| Line Coding Format | AMI, B8ZS, HDB3 |
| Status Indicators | Carrier detect, alarm |
| Features | Integrated CSU/DSU |
| Interfaces | 1 x T1/E1 |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-4-2, EN 61000-4-3, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, AS/NZS 60950, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, GR-63-CORE |
| Width | 3.5 in |
| Depth | 7.2 in |
| Height | 1.3 in |
| Weight | 6.38 oz |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
