Condition: NEW
Manufacturer Part #: R9Y04A
Condition: NEW
Availability: Call For Availability

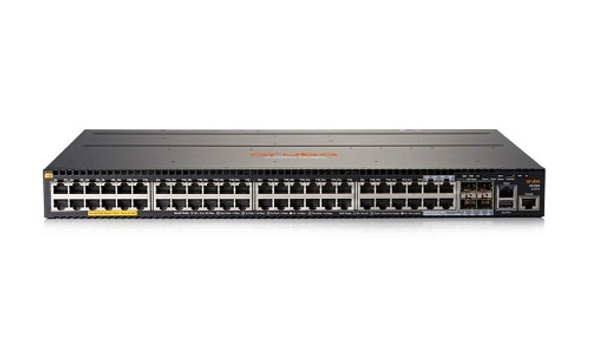

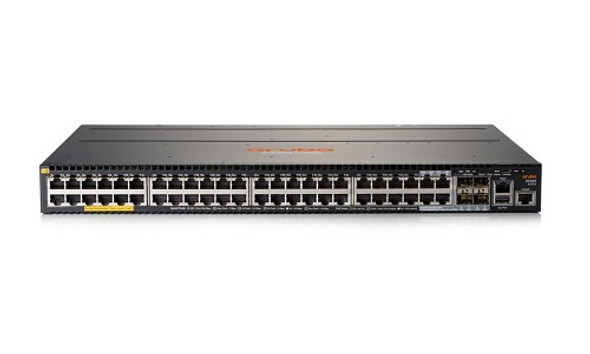

HPE Aruba CX 6100 Switch - 48x ports 10/100/1000BaseT Class 4 PoE Ports and 4x 1/10G SFP Uplink Ports - Supports PoE Standards IEEE 802.3af, 802.3at - Up to 740W of Class 4 PoE power budget - Fixed fans and power supply - Side-to-side primary airflow - Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included)

The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.

The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements.

The CX 6100 series supports a choice of management interfaces including easy to use Web GUI, industry standard CLI, Aruba NetEdit, and Aruba Central for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure.

Network Device Type: Switch

Form Factor: Rackmount

Data Transfer Rate: 1 Gbps

Networking / Ports Qty: 48

Data Link Protocol: Gigabit Ethernet

Processor / Type: ARM Cortex A9

RAM / Total Installed Size: 4 GB

Flash Memory / Installed Size: 16 GB

Power / Device Type: Power Supply

Manageable: Layer 2

Power / Provided (W): 740 Watt

Power Consumption Operational: Max Power w/o PoE): 49.7; Max Power (w/PoE): 890. Watt

Power / Voltage Required: 100127 VAC/200240 VAC

PoE Power Consumption: Fixed power supply Up to 740W of Class 4 PoE Power

Interfaces: 48x ports 10/100/1000BaseT; Class 4 PoE Ports; 4x 1/10G SFP Ports; 1x USB-C console port; 1x USB Type-A Host port.

10/100/1000BaseT Ports: 48

SFP Ports: 4

Dimensions (WxDxH): 17.4 in x 12.77 in x 1.73 in

Weight: 10.36 lbs
