Product Overview
Condition: NEW
Manufacturer Part #: JL709A

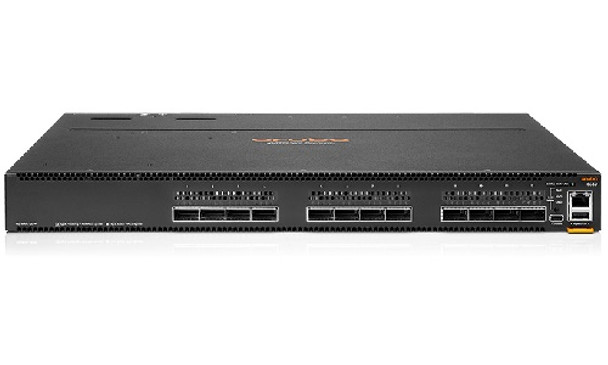

HPE Aruba CX 8360 High Performance Enterprise Campus and Data Center Switch - 12 x 40/100 Gigabit QSFP+/QSFP28 Ports - optional 4 x 10G/25G breakout cables supported, but not included - Back-to-Front Airflow - Bundle includes the 8360-12C base switch with 3 x Power-to-Port Fans (JL715A) and 2 x Power-to-Port Power Supply Units (JL712A) - Mounts in an EIA standard 19-inch rack; Rack mounting kit are not included and must be ordered separately
The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.
In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.
The Aruba CX 8360 with AOS-CX, a TAA compliant product, uses FIPS 140-2 validated cryptography for protection of sensitive information
Device Type: Switch - 12 ports - L3 - managed
Enclosure Type: Back to front airflow rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 12 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+
Performance: Switching capacity: 2.4 Tbps | Latency: 1 µs | Throughput: 2 Mbps
Capacity: Virtual interfaces (VLANs) per port for 802.1q: 4094
Jumbo Frame Support: 9KB
Routing Protocol: OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol: SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP
Features: Flow control, IP-routing, DHCP support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Deficit Weighted Round Robin (DWRR), Link Aggregation Control Protocol (LACP), Data Center Bridging (DCB), fan tray, redundant hot swappable fans, congestion control, packet storm protection, Strict Priority (SP), Loopback, Multicast Source Discovery Protocol (MSDP), Ethernet Ring Protection Switching (ERPS), MACsec support, VXLAN tunnel endpoints (VTEP) support, Explicit Congestion Notification (ECN), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), 32MB packet buffer, Virtual Extensible LAN (VXLAN), Link Aggregation, fast leave, User Datagram Protocol (UDP), Protocol Independent Multicast (PIM), Cisco IOS IP Service-Level Agreements (IPSLA), Rapid Reconfiguration of Spanning Tree (RSTP), broadcast mode, Virtual Switch Extension (VSX), Multicast routing
Compliant Standards: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Power: AC 90-264 V (47 - 63 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 17.4 in x 16 in x 1.7 in
Weight: 17.66 lbs
TAA Compliant: Yes
