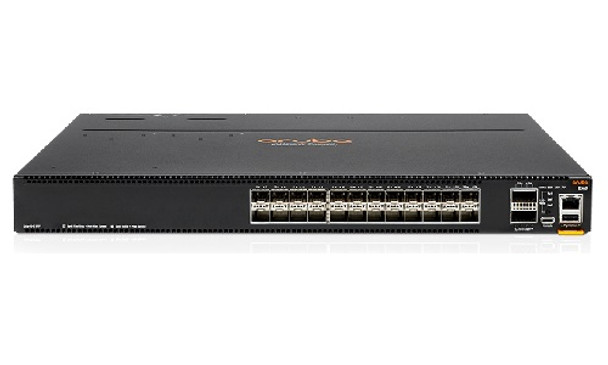

JL711A HP Aruba 8360-24XF2C Power-to-Port Switch Bundle (New)

Hewlett Packard

Write a Review
$17,723.00
SKU:
JL711A
UPC:
190017406251
Availability:
Inventory Available - But May Be Limited
Adding to cart… The item has been added

Product Overview

Condition: NEW
Availability: Inventory Available - But May Be Limited

HPE Aruba CX 8360 High Performance Enterprise Campus and Data Center Switch - 24 x 1/10 Gigabit SFP/SFP+ and 2 x 40/100 Gigabit QSFP+/QSFP28 Ports - optional 1GBASE-T SFP, 10GBASE-T SFP+ transceiver and 4 x 10G/25G breakout cables supported, but not included - Back-to-Front Airflow - Bundle includes the 8360-24XF2C base switch with 3 x Power-to-Port Fans (JL715A) and 2 x Power-to-Port Power Supply Units (JL712A) - Mounts in an EIA standard 19-inch rack; Rack mounting kit are not included and must be ordered separately (JL711A)

The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.

The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.

In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.

The Aruba CX 8360 with AOS-CX, a TAA compliant product, uses FIPS 140-2 validated cryptography for protection of sensitive information

HPE Aruba CX 8360 High Performance Enterprise Campus and Data Center Switch

Device Type Switch - 24 ports - L3 - managed
Enclosure Type Back to front airflow rack-mountable 1U
Subtype 100 Gigabit Ethernet
Ports 24 x 1 Gigabit SFP/ 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+ / QSFP28
Performance Switching capacity: 880 Gbps ¦ Latency: 1 µs ¦ Throughput: 2 Mbps
Capacity Virtual interfaces (VLANs) per port for 802.1q: 4094
Jumbo Frame Support 9KB
Routing Protocol OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP
Encryption Algorithm FIPS 140-2
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, IP-routing, DHCP support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Deficit Weighted Round Robin (DWRR), Link Aggregation Control Protocol (LACP), Data Center Bridging (DCB), fan tray, redundant hot swappable fans, congestion control, packet storm protection, Strict Priority (SP), Loopback, Multicast Source Discovery Protocol (MSDP), Ethernet Ring Protection Switching (ERPS), MACsec support, VXLAN tunnel endpoints (VTEP) support, Explicit Congestion Notification (ECN), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), 32MB packet buffer, Virtual Extensible LAN (VXLAN), Link Aggregation, fast leave, User Datagram Protocol (UDP), Protocol Independent Multicast (PIM), Cisco IOS IP Service-Level Agreements (IPSLA), Rapid Reconfiguration of Spanning Tree (RSTP), broadcast mode, Virtual Switch Extension (VSX), Multicast routing
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Processor 1: 1.8 GHz
RAM 16 GB
Flash Memory 32 GB
Expansion / Connectivity
Interfaces 12 x 100Gbit/40Gbit LAN ¦ 1 x serial (console) ¦ 1 x USB-C console ¦ 1 x LAN RJ-45 ¦ 2 x USB
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme N+1
Power Provided 550 Watt
Voltage Required AC 120/230 V (47 - 63 Hz)
Miscellaneous
Included Accessories 3 fan trays
MTBF 375668 hours
Compliant Standards EMC, ICES-003 Class A, RoHS, Laser Class 1, UL 60950-1, ISO 7779, VCCI Class A, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EMC 2014/30/EU, ISO 9296, FCC CFR47 Part 15 A, CNS 13438 Class A, Directive 2014/35/EU, EN 55032:2015, CISPR 32 Class A, EN 61000-3-2:2014 Class A, CISPR 35, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, IEC 60825-1:2014 Class 1, IEC60950-1:2005, Second edition + Am1:2009 + A2:2013
TAA Compliant Yes
Dimensions & Weight
Width 17.4 in
Depth 16 in
Height 1.7 in
Weight 17.79 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 15 - 95% (non-condensing)
Humidity Range Storage 15 - 95% (non-condensing)
