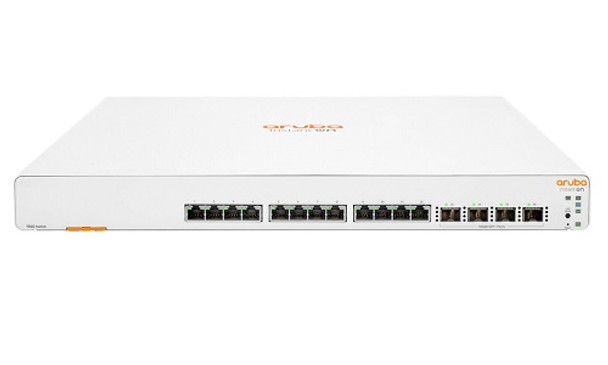

JL805A HP Aruba Instant On 1960 12XGT 4SFP+ Switch (New)

Hewlett Packard

Write a Review
Inventory Available - But May Be Limited
Adding to cart… The item has been added

Product Overview

Condition: NEW
Availability: Inventory Available - But May Be Limited

HPE Aruba Instant On 1960 Smart Managed Stackable Switch - 12 Port - 12 x 100/1000/10GBASE-T and 4 x 10 Gigabit SFP+ Uplink Ports - Internal power supply - No extra licensing or subscription fees required - desktop and rack-mountable, includes 2-post rack kit (JL805A)

Plug-and-play switches that work together with Instant On APs right out of the box. This model is compatible with AP15 Instant On Access Points

The Aruba Instant On 1960 Smart-managed layer 2+ Ethernet switch series is an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications.

Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.

True Stacking allows for redundancy while making it simple to configure, manage, and troubleshoot multiple switches as a single entity

Perfect for training centers, healthcare facilities and tech start-ups

Device Type Switch - 12 ports - managed
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+
Performance Throughput: 238 Mpps ¦ Switching capacity: 320 Gbps ¦ Latency (100 Mbps): 7.4 µs ¦ Latency (1 Gbps): 4.2 µs ¦ Latency (10 Gbps): 1.1 µs
Capacity MAC address entries: 16000 ¦ IPv4 routes (static): 512 ¦ IPv6 routes (static): 512
MAC Address Table Size 16000 entries
Jumbo Frame Support 9216 bytes
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS
Authentication Method RADIUS
Features Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, Media Endpoint Discovery (LLDP-MED)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP)
Processor 1 x ARM: 2 GHz
Status Indicators Port status, power
Interfaces 12 x 10/100/1000 Base-T RJ-45 ¦ 4 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+
Power Device Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
MTBF 88.8 years
Compliant Standards EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 55032:2015 Class A, CISPR 32:2015 Class A, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018
Width 17.4 in
Depth 13.8 in
Height 1.7 in
Weight 9.48 lbs
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 15 - 95% (40 °C)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
