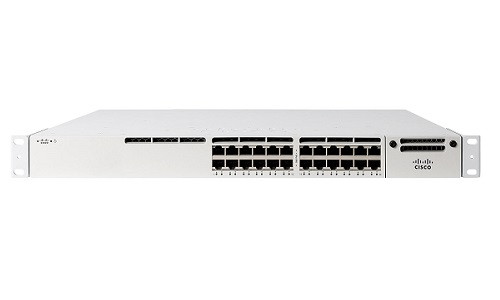

MS390-24-HW Cisco Meraki MS390 Multi-Gigabit Access Switch (New)


Write a Review
Inventory Available - But May Be Limited
Adding to cart… The item has been added

Product Overview

Condition: NEW
Availability: Inventory Available - But May Be Limited

Cisco Meraki MS390 Cloud Managed Access Switch - Stackable, Layer-3, Multi-Gigabit support - 24 x 1GbE RJ45 and 2 -- 40G or 4/8 -- 10G modular fiber uplink ports - designed for demanding high-bandwidth applications and deployments of high-speed 802.11ax/wifi-6 access points (MS390-24-HW)

Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000
Performance Switching capacity: 208 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
MAC Address Table Size 32K entries
Max Units In A Stack 8
Routing Protocol OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP
Remote Management Protocol DHCP, IPv4, IPv6, RSTP, RADIUS
Authentication Method RADIUS
Features Auto-negotiation, IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, Per-VLAN Spanning Tree (PVST), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, hot swappable fan, Cisco StackPower technology, crossover detection, cloud managed, Role-Based Access Control (RBAC), Root Guard, Loop Guard, MAC Access Bypass (MAB), BPDU Guard, Cisco Discovery Protocol (CDP)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 ¦ 2 x network stack device ¦ 1 x management
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power Device Internal power supply - hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 350 Watt
Voltage Required AC 120/230 V (50 - 60 Hz)
Power Consumption Operational 99 Watt
Power Consumption Stand by 79.2 Watt
Rack Mounting Kit Included
MTBF 314,790 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, FCC CFR47 Part 15 A, KN32, KN35, EN 55032, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, TCVN 7317
Dimensions & Weight
Width 17.5 in
Depth 17.7 in
Height 1.7 in
Weight 16.03 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 - 95%
