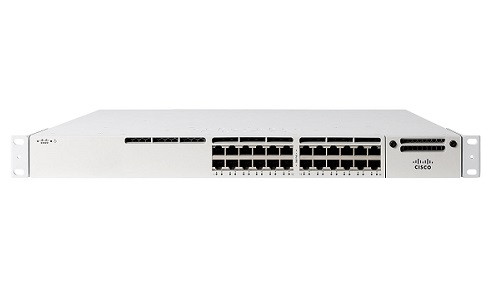

Name: MS390-24UX-HW Cisco Meraki MS390 Multi-Gigabit Access Switch (New)
Brand: Cisco
SKU: MS390-24UX-HW
Price: 9823 USD
Availability: InStock

Product Overview

Condition: NEW
Availability: Inventory Available - But May Be Limited

Cisco Meraki MS390 Cloud Managed Access Switch - Stackable, Layer-3, Multi-Gigabit support - UPoE (560 W) - 24 x 1/2.5/5/10GBase-T and 2 -- 40G or 4/8 -- 10G modular fiber uplink ports - designed for demanding high-bandwidth applications and deployments of high-speed 802.11ax/wifi-6 access points (MS390-24UX-HW)

General

Device Type	Switch - 24 ports - L3 - managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	24 x 100/1000/2.5G/5G/10GBase-T (UPOE)
Power Over Ethernet (PoE)	UPOE
PoE Budget	560 W
Performance	Switching capacity: 640 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 476.19 Mpps
MAC Address Table Size	32K entries
Max Units In A Stack	8
Routing Protocol	OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP
Remote Management Protocol	DHCP, IPv4, IPv6, RSTP, RADIUS
Authentication Method	RADIUS
Features	Auto-negotiation, IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, Per-VLAN Spanning Tree (PVST), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, hot swappable fan, Cisco StackPower technology, crossover detection, cloud managed, Role-Based Access Control (RBAC), Root Guard, Loop Guard, MAC Access Bypass (MAB), BPDU Guard, Cisco Discovery Protocol (CDP)
Compliant Standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)

Expansion / Connectivity

Interfaces	24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE ¦ 2 x network stack device ¦ 1 x management
Expansion Slots	1 (total) / 1 (free) x expansion slot

Power

Power Device	Internal power supply - hot-plug
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Power Provided	1100 Watt
Voltage Required	AC 120/230 V (50 - 60 Hz)
Power Consumption Operational	809.9 Watt
Power Consumption Stand by	162.7 Watt

Miscellaneous

Rack Mounting Kit	Included
MTBF	214,760 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, FCC CFR47 Part 15 A, KN32, KN35, EN 55032, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, TCVN 7317
