Condition: NEW
Manufacturer Part #: MS390-48UX2-HW
End of LIfe / Last Day of Support: March 28, 2032
Replacement Part: C9300-48UN-M

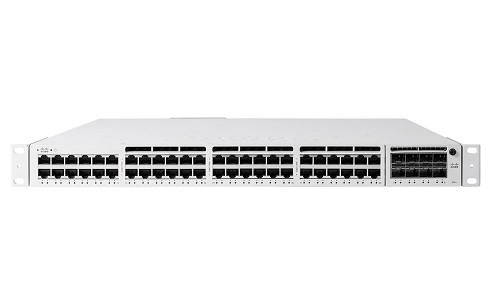

Cisco Meraki MS390 Stackable Access Switch - Integrated multi-factor authentication for Dashboard management - Layer-3, Multi-Gigabit support - 48 x mGbE RJ45 UPoE/802.3bt Ports - 1745 watt possible PoE Budget - optional modular 10GbE to 40GbE SFP+/QSFP+ Uplinks - 2 x Dedicated 120G Hardware Stacking Ports - Hot swapable fans and dual power supply (1 x MA-PWR-1100WAC PSU and 3 x Pre-installed fans included) - Rack mountable

The Meraki MS390 addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The MS390 delivers resiliency with fast stack convergence and StackPower. The MS390 provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The MS390 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Device Type: Switch - 48 ports - L3 - managed - stackable

Enclosure Type: Rack-mountable 1U

Subtype: 5 Gigabit Ethernet

Ports: 48 x 100/1000/2.5G/5GBase-T (UPOE)

Power Over Ethernet (PoE): UPOE

PoE Budget: 645 W

Performance: Switching capacity: 640 Gbps | Stacking bandwidth: 480 Gbps | Forwarding rate: 476.19 Mpps

MAC Address Table Size: 32K entries

Jumbo Frame Support: 9600 bytes

Routing Protocol: OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP

Remote Management Protocol: DHCP, IPv4, IPv6, RSTP, RADIUS

Features: Auto-negotiation, IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, Per-VLAN Spanning Tree (PVST), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, hot swappable fan, Cisco StackPower technology, crossover detection, cloud managed, 3 fans, Role-Based Access Control (RBAC), Root Guard, Loop Guard, MAC Access Bypass (MAB), BPDU Guard, Cisco Discovery Protocol (CDP)

Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)

Power: AC 120/230 V (50 - 60 Hz)

Power Redundancy: Optional

Dimensions (WxDxH): 17.5 in x 22.2 in x 1.7 in

Weight: 20.04 lbs
